Air Bubble Washer
Air bubble washing for preparation before peeling or juice extraction, and for cleaning whole fruit for sale.
Discuss Your Air Bubble Washer Requirements
Operation and Applications

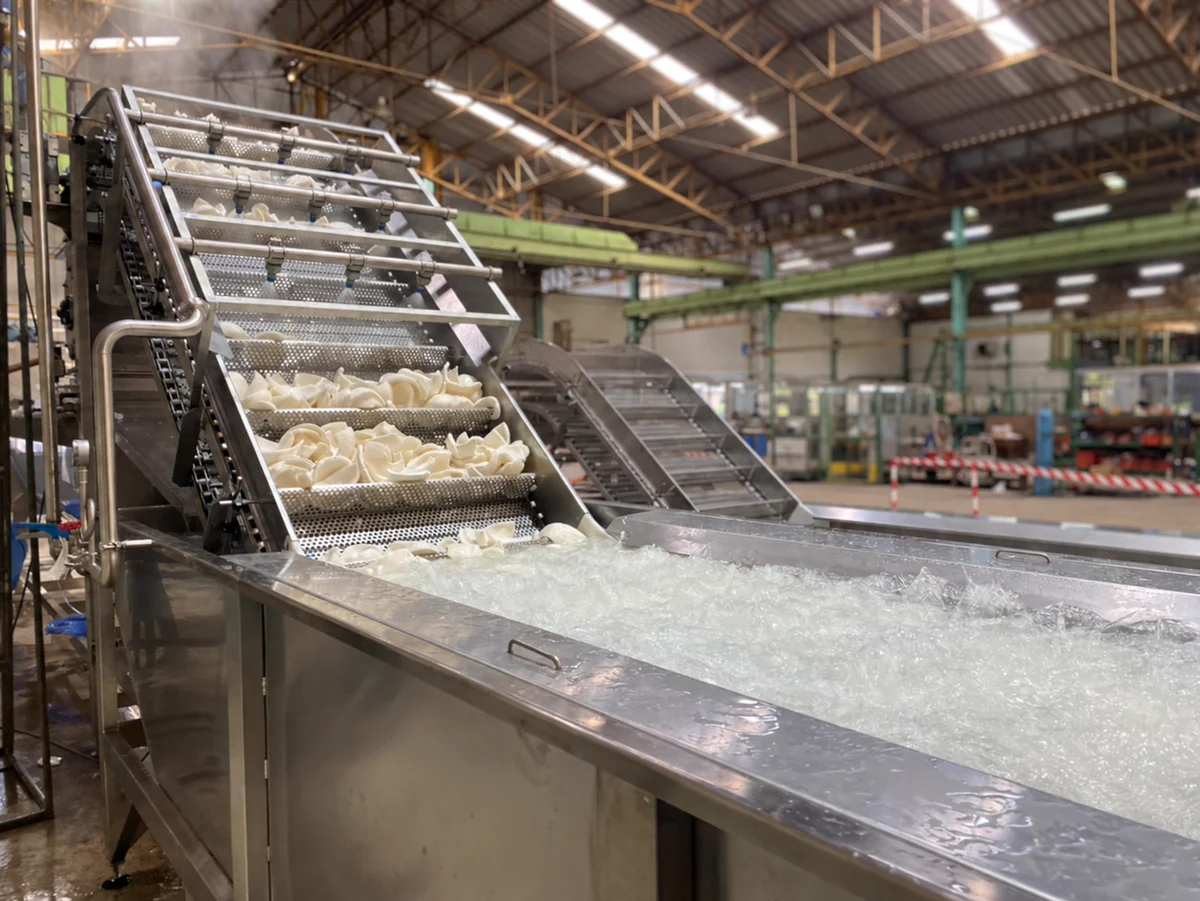

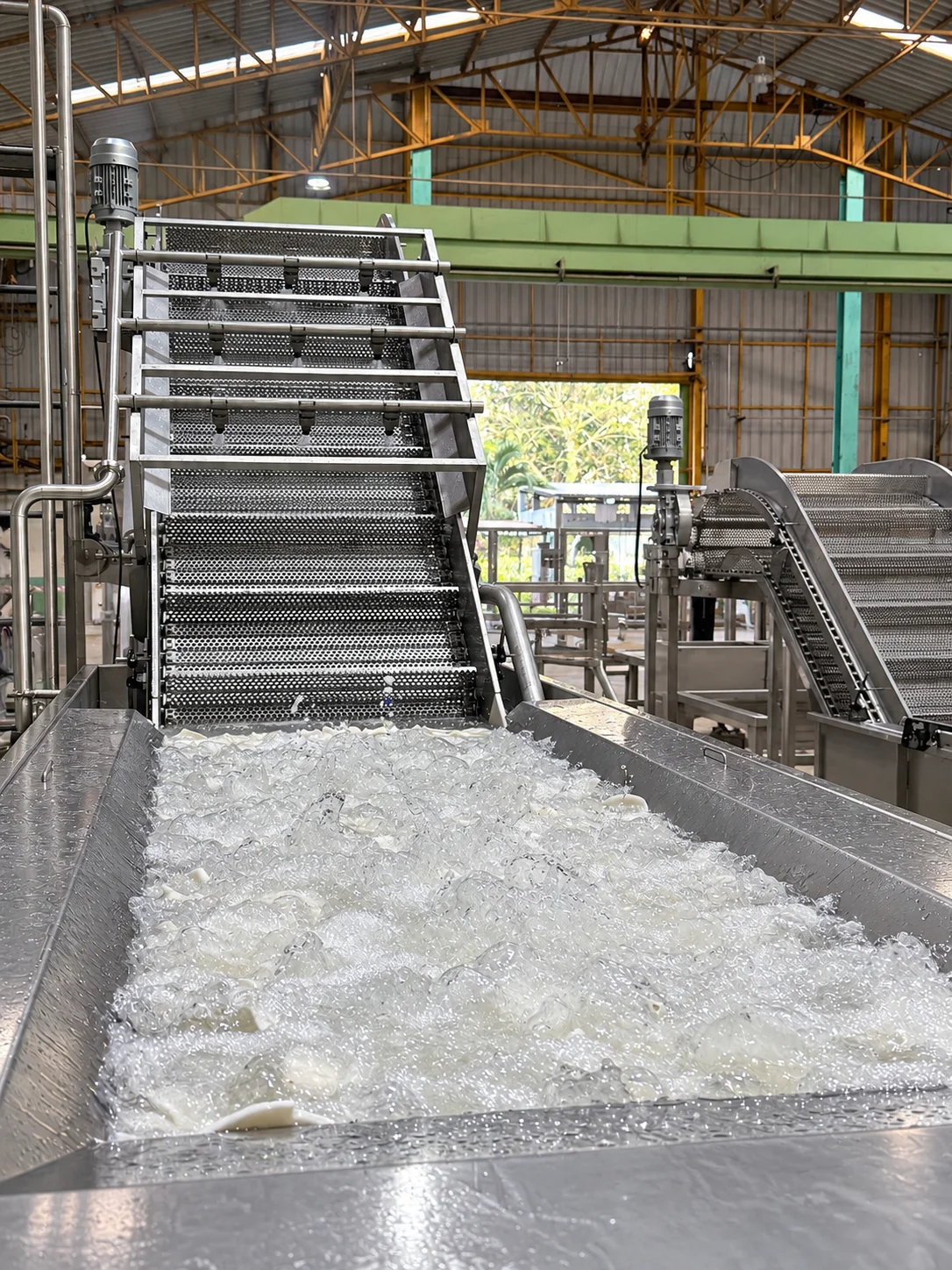

Air bubbles agitate the water around the raw material, while the conveying and spray arrangement supports washing and discharge.
An Air Bubble Washer with Spray is used for washing peeled and unpeeled raw materials. Applications include washing before peeling or juice extraction, as well as preparing whole fruit for sale. The washing stage depends on the raw material and the process.
The machine configuration and operating conditions are selected to suit the raw material, process and site requirements.

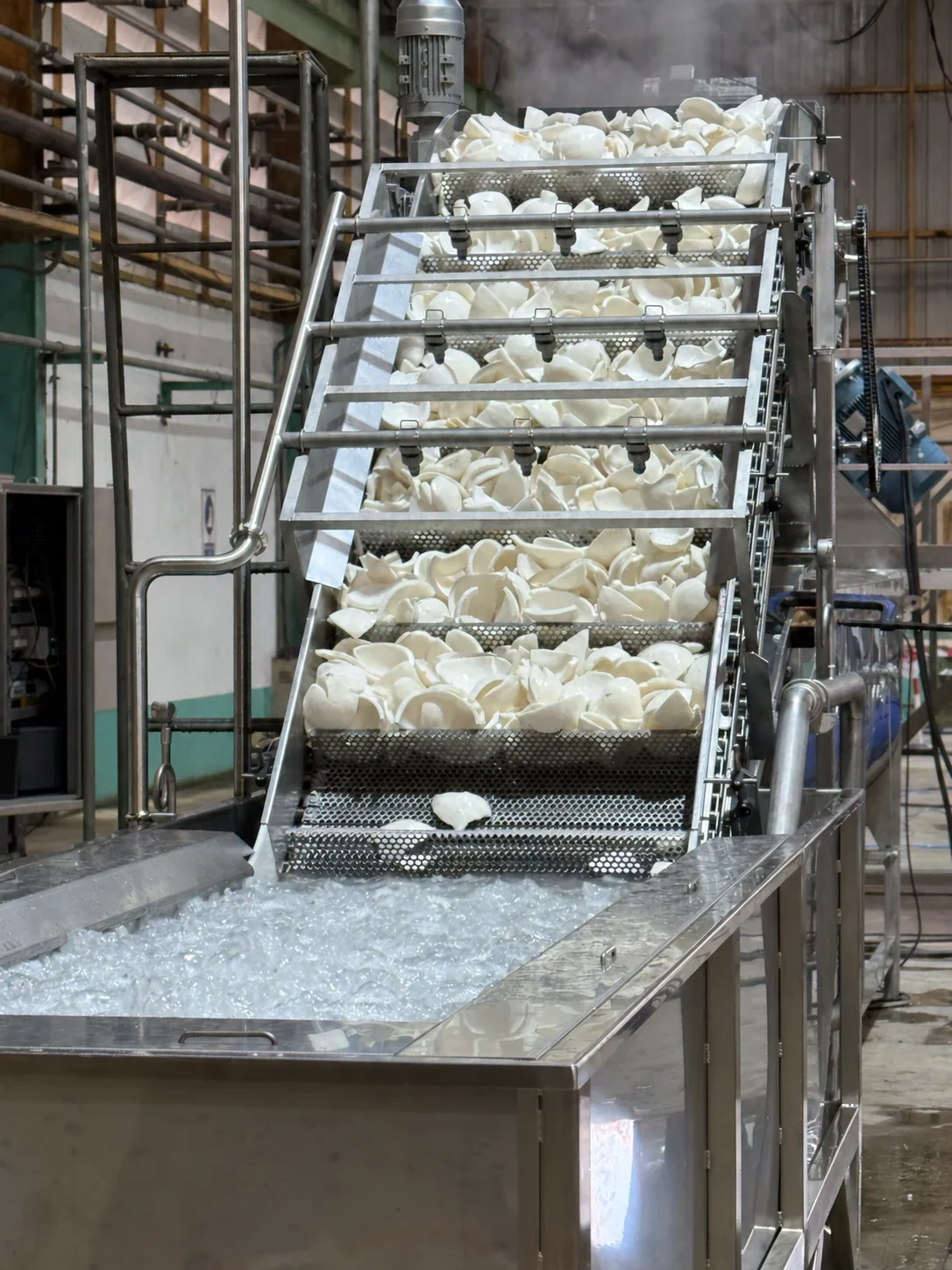

Conveyor and Spray Arrangement
ABW-3200

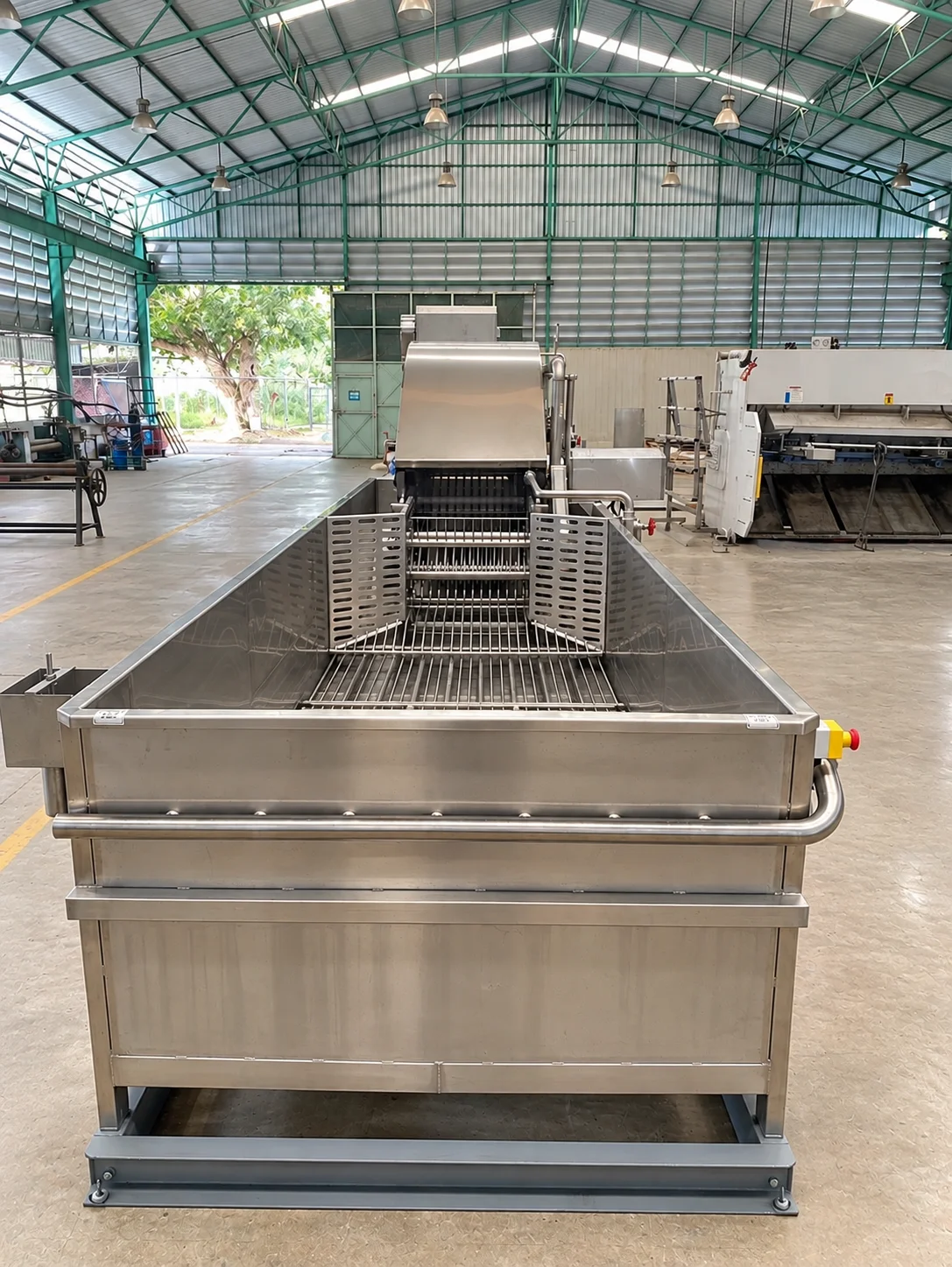

Equipment images illustrate the washer type. The specifications below apply to ABW-3200.
| Specification | Value |
|---|---|
| Processing capacity | 3,200 kg/hr/machine |
| Washing method | Air bubble agitation in water basin |
| Example washing arrangement | Two machines in sequence: preliminary washing, followed by clean-water washing |
| Overall dimensions (W × L × H) | 1,200 × 5,600 × 3,000 mm (approx.) |
| Motor | 1.1 kW |
| Electrical supply | 380 VAC / three-phase / 50 Hz |
The two-machine arrangement is one configuration for preliminary and clean-water washing. It is not a requirement for every line, and the listed capacity is per machine. Overall dimensions are approximate and listed in width × length × height order.
The 1.1 kW value is the stated motor rating, not the total connected load of every component. Equipment and connections are defined in the agreed project scope.
Configuration and Utilities

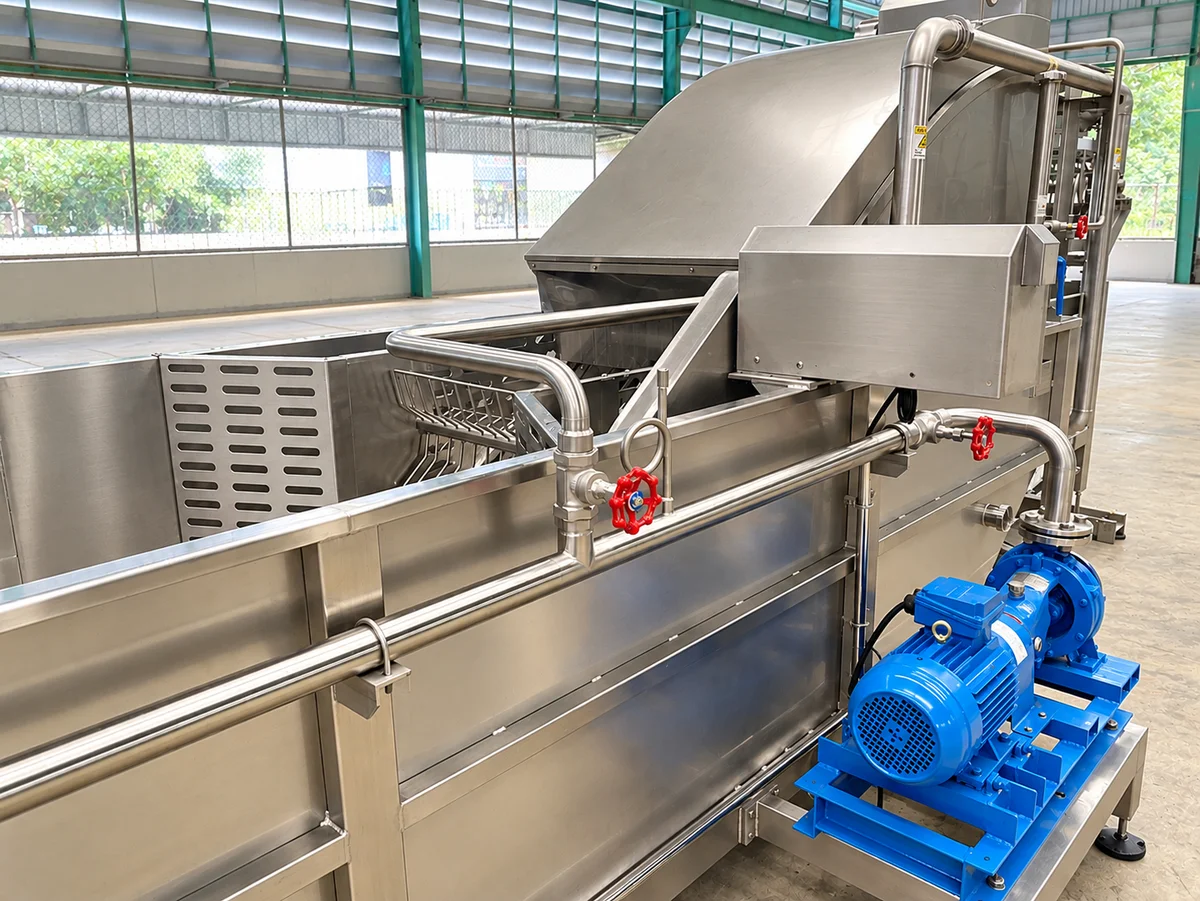

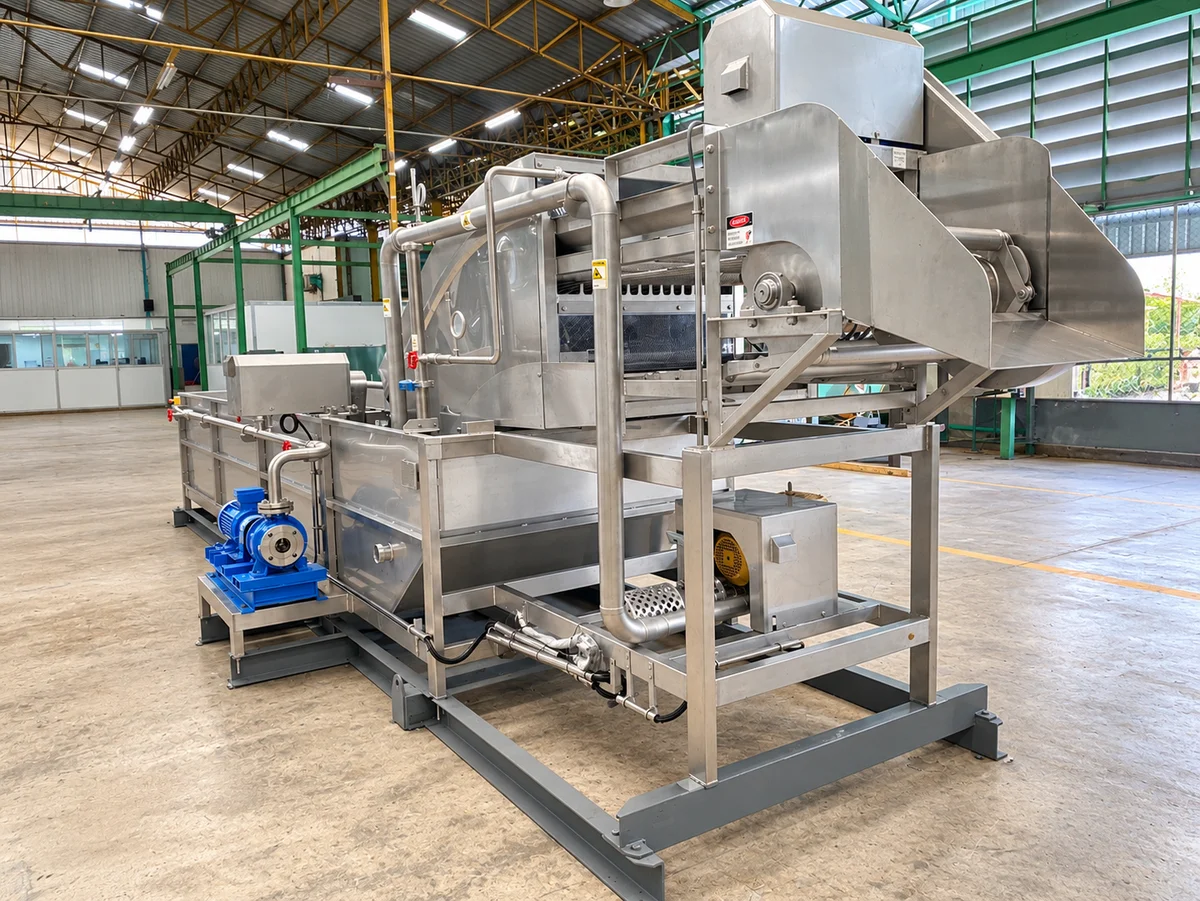

For ABW-3200, the basin, conveyor, piping and product-contact components use AISI 304 stainless steel. The reference arrangement includes an air blower and distribution system, an outfeed/dewatering conveyor and a control panel. Process-water supply and drainage are required.
Role and Project Scope
Muninmax designs and manufactures the Air Bubble Washer with Spray. The scope of the washing tank, air bubble system, conveyor and spray system is defined for each project.
Externally sourced components and connections to other machinery are identified separately in the agreed scope of supply. Installation and commissioning follow the agreement with the customer.
Position in the Process
Washing may take place before peeling, before juice extraction or when preparing whole fruit for sale. Its position is selected around the raw material and the following process.
Discuss Your Washing Requirements
Contact Us
Address: 107/1 Moo 5, Wang Phong, Pran Buri, Prachuap Khiri Khan 77120, Thailand.
Tell us the material to be washed, its condition, the dirt to be removed and the next process. Include the required throughput, process-water connections and site information where available.
