Hammer Mill & Accessories

Prepare product material for the next extraction stage with blade-based crushing or hammer milling. Muninmax selects the size-reduction arrangement around the incoming material and the requirements of the downstream process.

Discuss Your Hammer Mill & Accessories Requirements

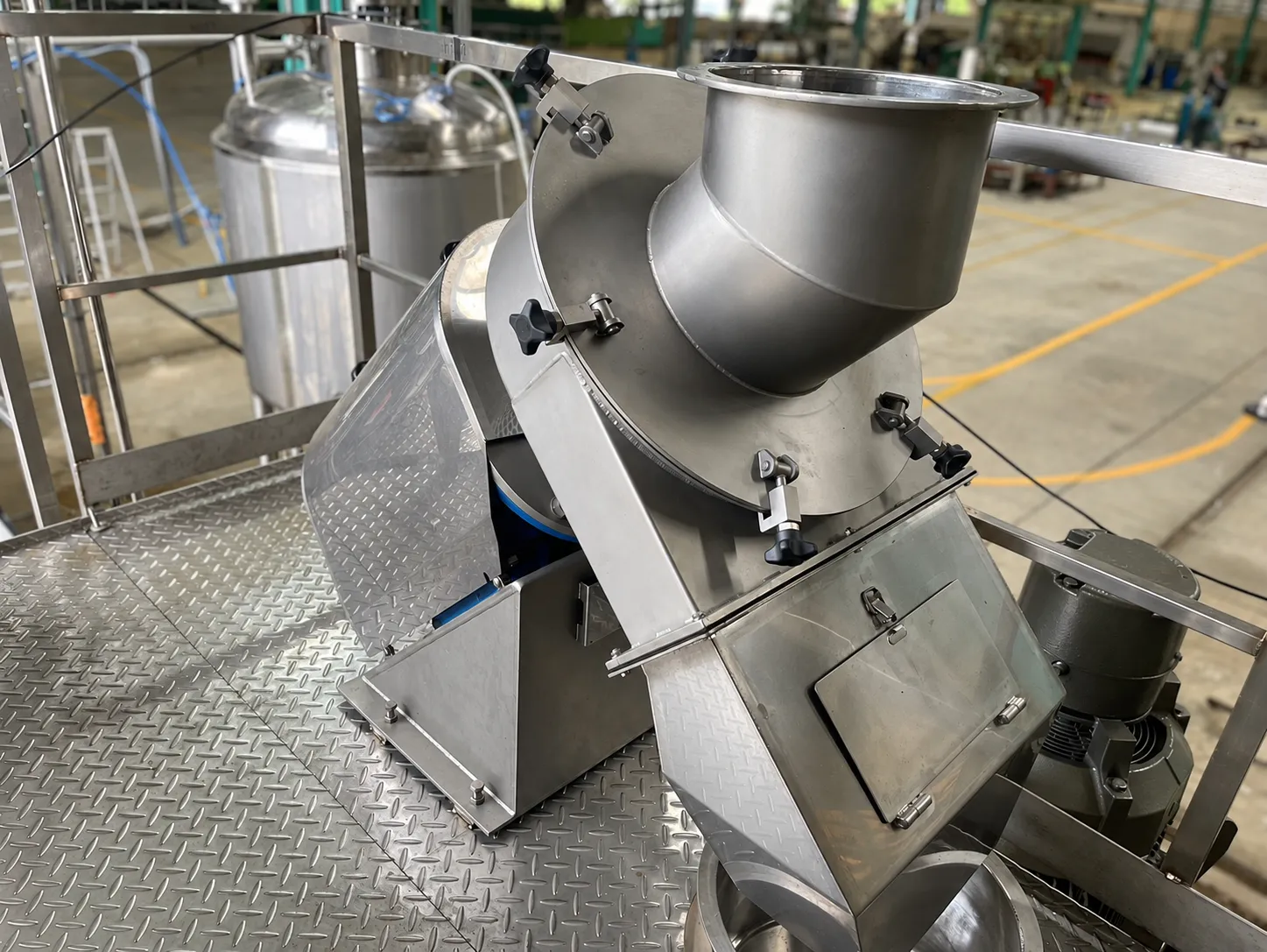

Hammer mill equipment and its drive assembly.
Hammer Mill — equipment example.

Hammer Mill

Muninmax designs and manufactures Hammer Mills that use hammers to reduce larger particles before extraction. Four models provide a range of processing capacities, motor ratings and screen configurations.

Processing capacities refer to material fed to the machine. Equipment selection and achievable throughput depend on the raw material, its preparation and the required process duty.

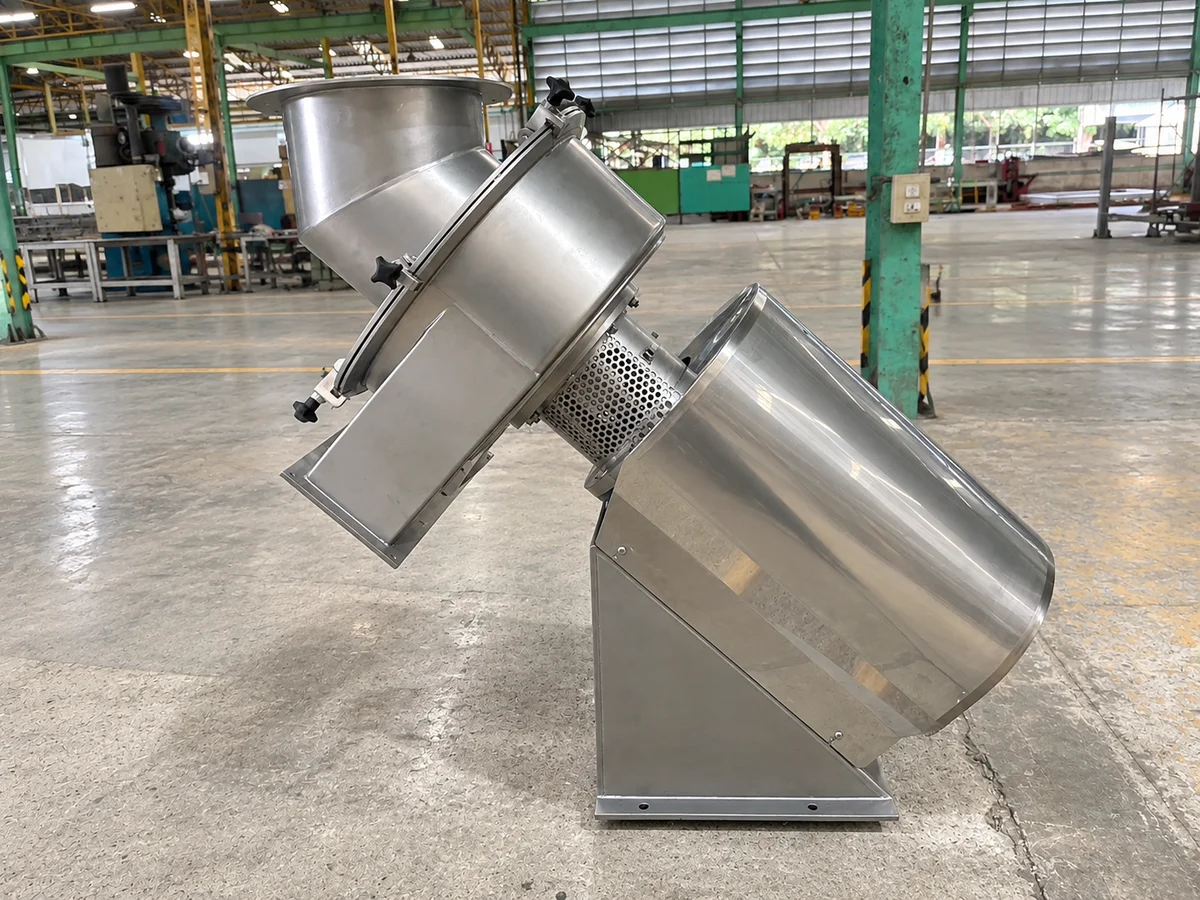

Hammer mill assembly viewed from the side.
Hammer mill assembly viewed from the side.

HM 240D

HM 240D — reference data
SpecificationValue
Processing capacity1.2–1.5 t/h
Screen hole diameter5.5–7.5 mm
Overall dimensions (L × W × H)960 × 460 × 920 mm
Juice outlet hopper size126 × 400 mm
Maximum horsepower requirement10 HP
Net weight180 kg
Motor7.5 kW, 4 pole, 380 VAC / three-phase / 50 Hz
Rotor speed1,450 RPM

HM 270D

HM 270D — reference data
SpecificationValue
Processing capacity3 t/h
Screen hole diameter19 mm
Overall dimensions (L × W × H)1,130 × 540 × 1,070 mm
Juice outlet hopper size116 × 476 mm
Maximum horsepower requirement15 HP
Net weight270 kg
Motor11 kW, 4 pole, 380 VAC / three-phase / 50 Hz
Rotor speed1,450 RPM

HM 300D

HM 300D — reference data
SpecificationValue
Processing capacity5 t/h
Screen hole diameter10 mm
Overall dimensions (L × W × H)1,220 × 540 × 1,130 mm
Juice outlet hopper size160 × 480 mm
Maximum horsepower requirement20 HP
Net weight400 kg
Motor15 kW, 4 pole, 380 VAC / three-phase / 50 Hz
Rotor speed1,450 RPM

HM 400D

HM 400D — reference data
SpecificationValue
Processing capacity10–14 t/h
Screen hole diameter5/8"
Overall dimensions (L × W × H)1,180 × 720 × 1,370 mm
Juice outlet hopper size240 × 700 mm
Maximum horsepower requirement40 HP
Net weight550 kg
Motor30 kW, 4 pole, 380 VAC / three-phase / 50 Hz
Rotor speed1,450 RPM

Construction

The frame and general product-contact components use AISI 304 stainless steel. The heavy-duty hammers use steel with hardened working surfaces.

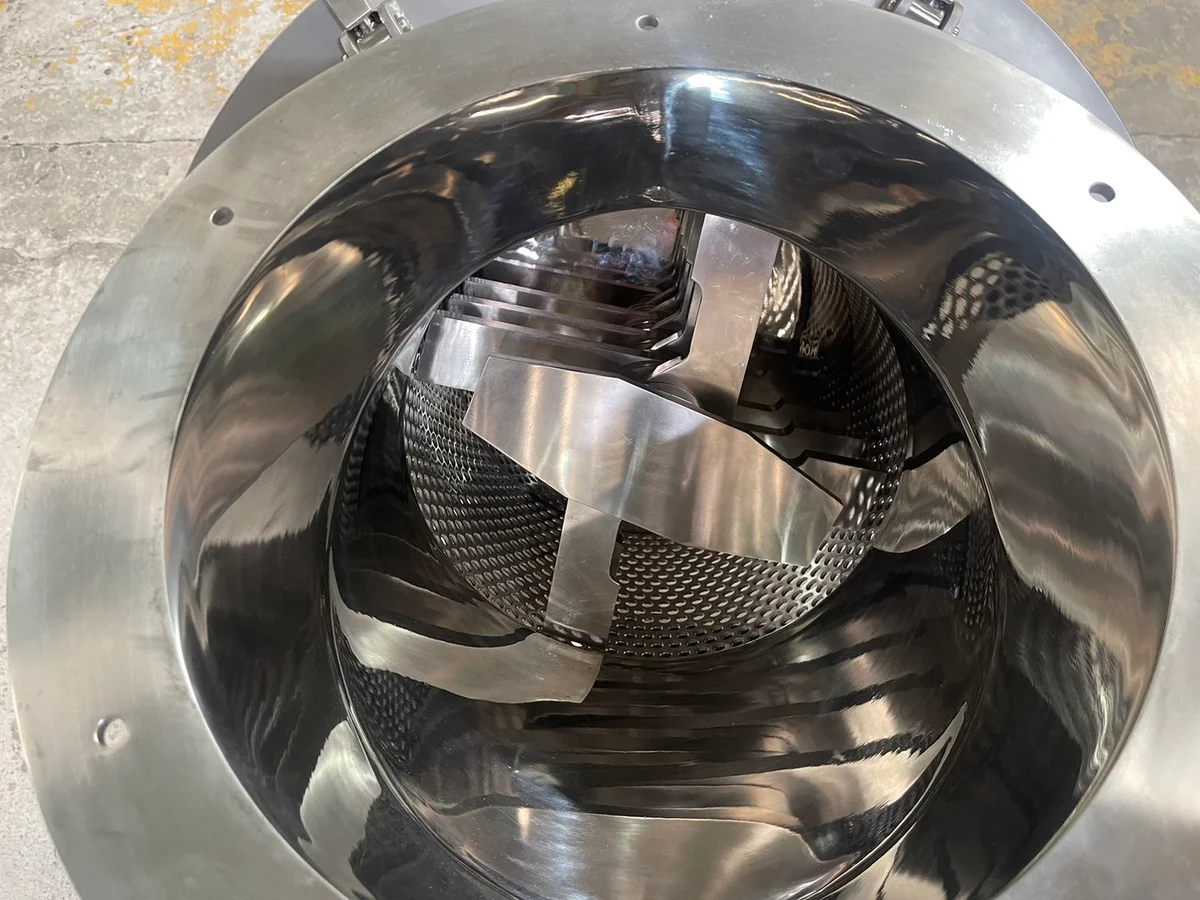

Hammer Mill: Internal rotor and perforated screen.
Hammer Mill — internal rotor and perforated screen.

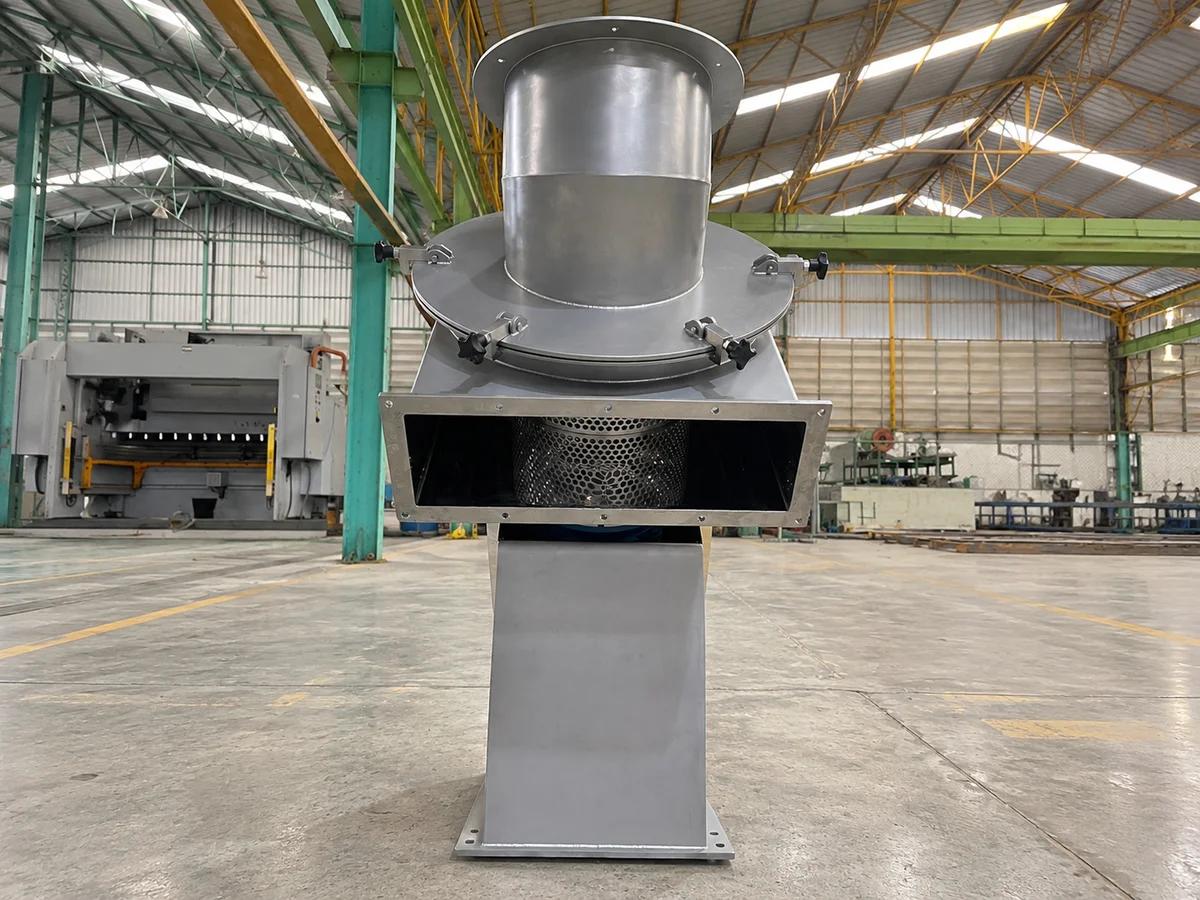

Hammer mill with an upper feed opening and lower discharge opening.
Hammer mill with an upper feed opening and lower discharge opening.

Knife Crusher — Supporting Equipment

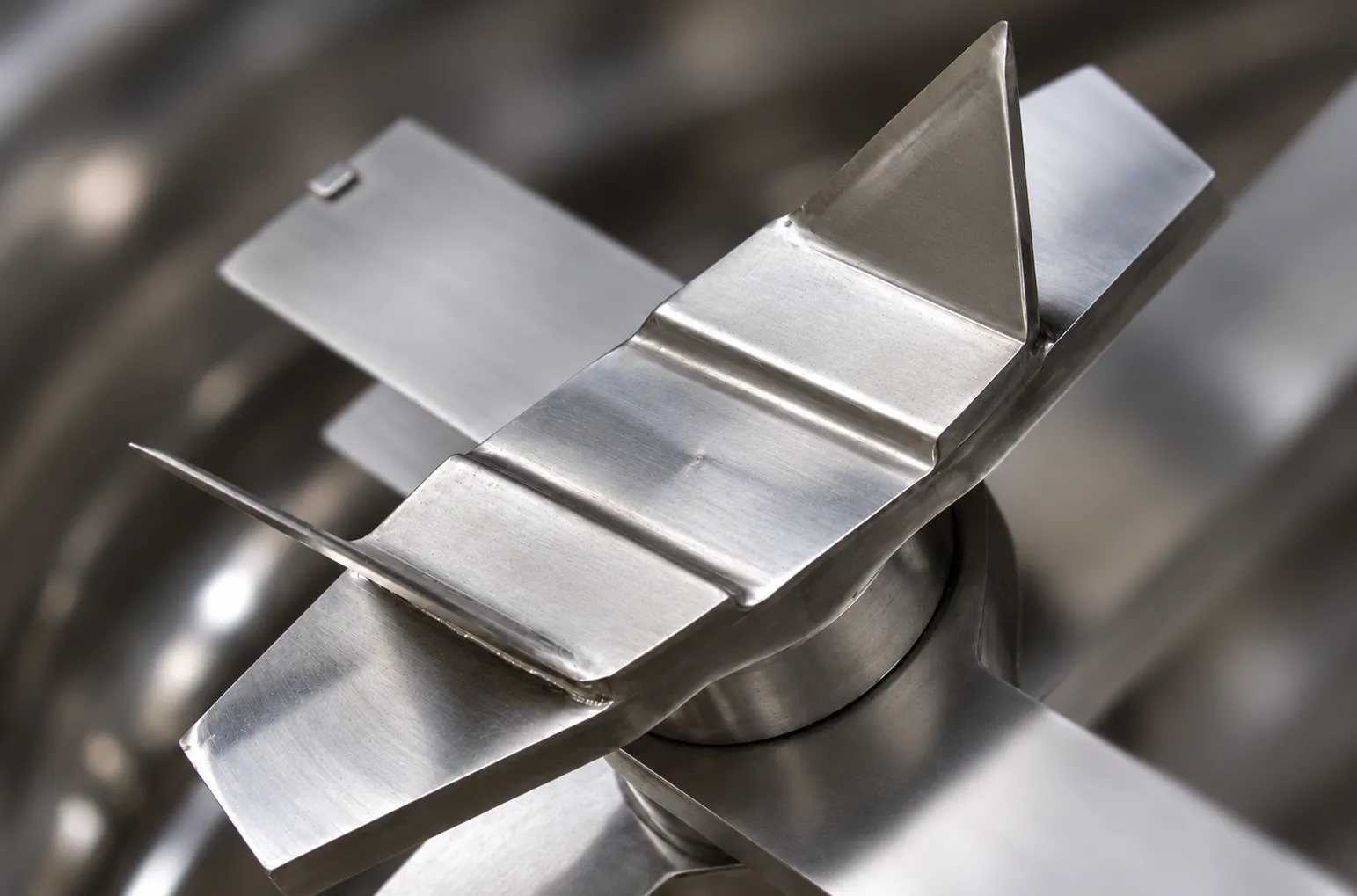

Crossed metal blades in a Knife Crusher blade assembly.
Knife Crusher blade assembly — equipment example.

The Knife Crusher uses blades to reduce prepared material into smaller, more uniformly sized particles before juice extraction. Muninmax designs each machine around the raw material and the processing capacity required for the project.

Discuss Your Crushing Requirements

Tell us what material enters the machine, its condition and the extraction process that follows. Include the required throughput and particle characteristics so we can define the preparation stage with you.
