Belt Press
Muninmax sources Belt Press equipment from specialist suppliers to match project requirements. Belts and rollers compress prepared or crushed raw material, producing juice and discharging pressed residue with reduced moisture through a separate outlet.
Discuss Your Belt Press Requirements

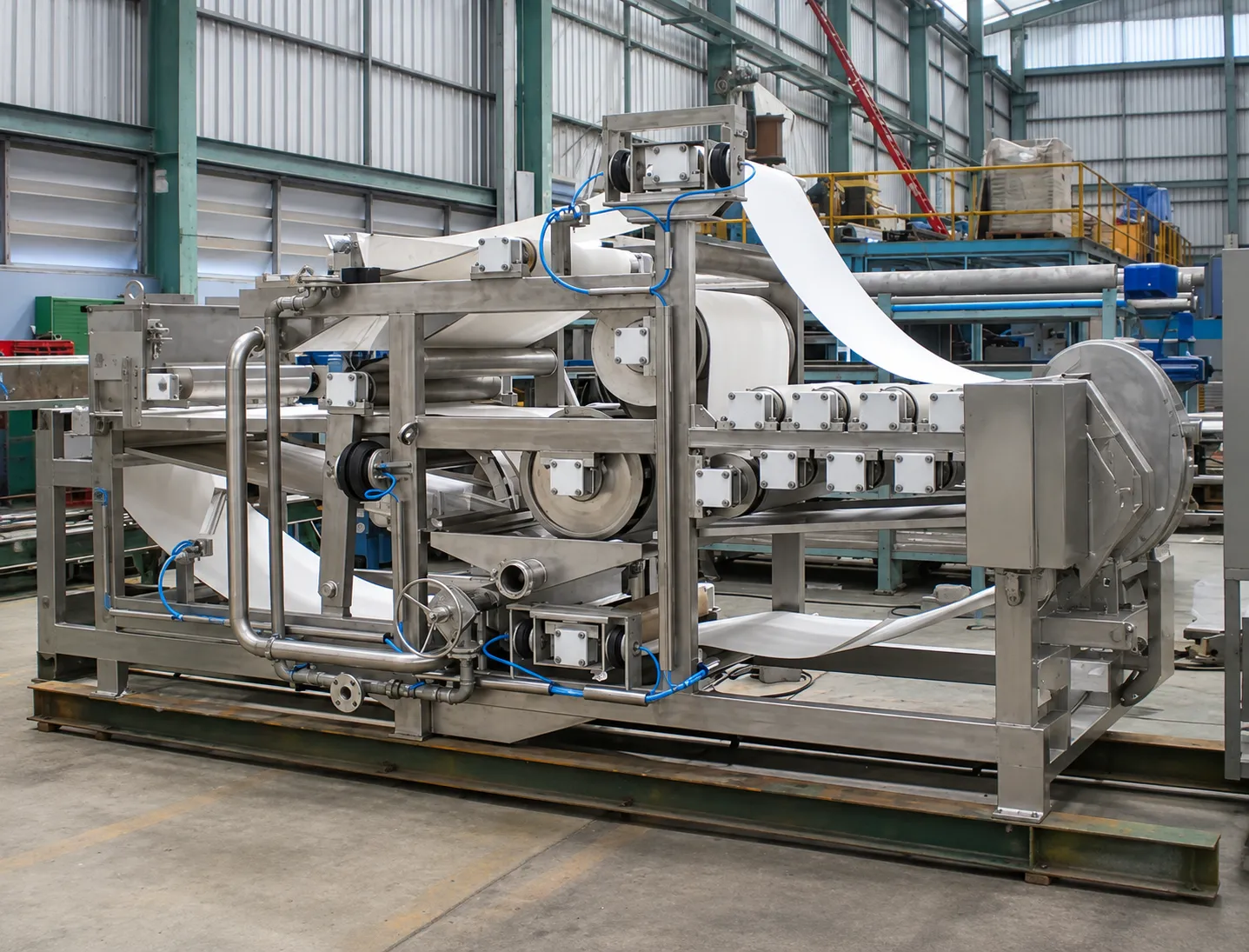

Belt Press — MN-800
The MN-800 configuration uses five pressing stages. Its drive rating refers to the belt drive, with process water required for belt washing.
Processing capacities refer to material fed to the machine. Equipment selection and achievable throughput depend on the raw material, its preparation and the required process duty.
MN-800 Specifications
| Specification | Value |
|---|---|
| Overall length | 4,040 mm |
| Overall width including drive | 1,630 mm |
| Frame width | 1,250 mm |
| Maximum operating height | 2,205 mm |
| Mash feeding width | 650 mm |
| Operating width at discharge | 750 mm |
| Belt operating speed | 1.5–6 m/min |
| Processing capacity | 3 t/h |
| Machine weight | 2,450 kg |
| Drive motor power | 2.2 kW |
| Electrical supply | 230 / 400 V, 50 Hz |
Construction and Belt Operation
The specified metal contact and structural parts use AISI 304 stainless steel. Two hollow-shaft gear units coordinate the belts, with manual speed adjustment. Two belt-misalignment limit switches monitor belt position.
Discuss Your Product Requirements
Tell us whether you need expressed juice, fruit purée or adjustment of pulp content in juice. Include the prepared feed condition, required throughput and the product characteristics needed for the next stage.
