Coconut Drilling
Explore CD-1H and CD-2H drilling arrangements for collecting water from de-husked coconuts, with reference specifications and feed conditions.
Discuss Your Coconut Drilling Requirements
Coconut Drilling Machines

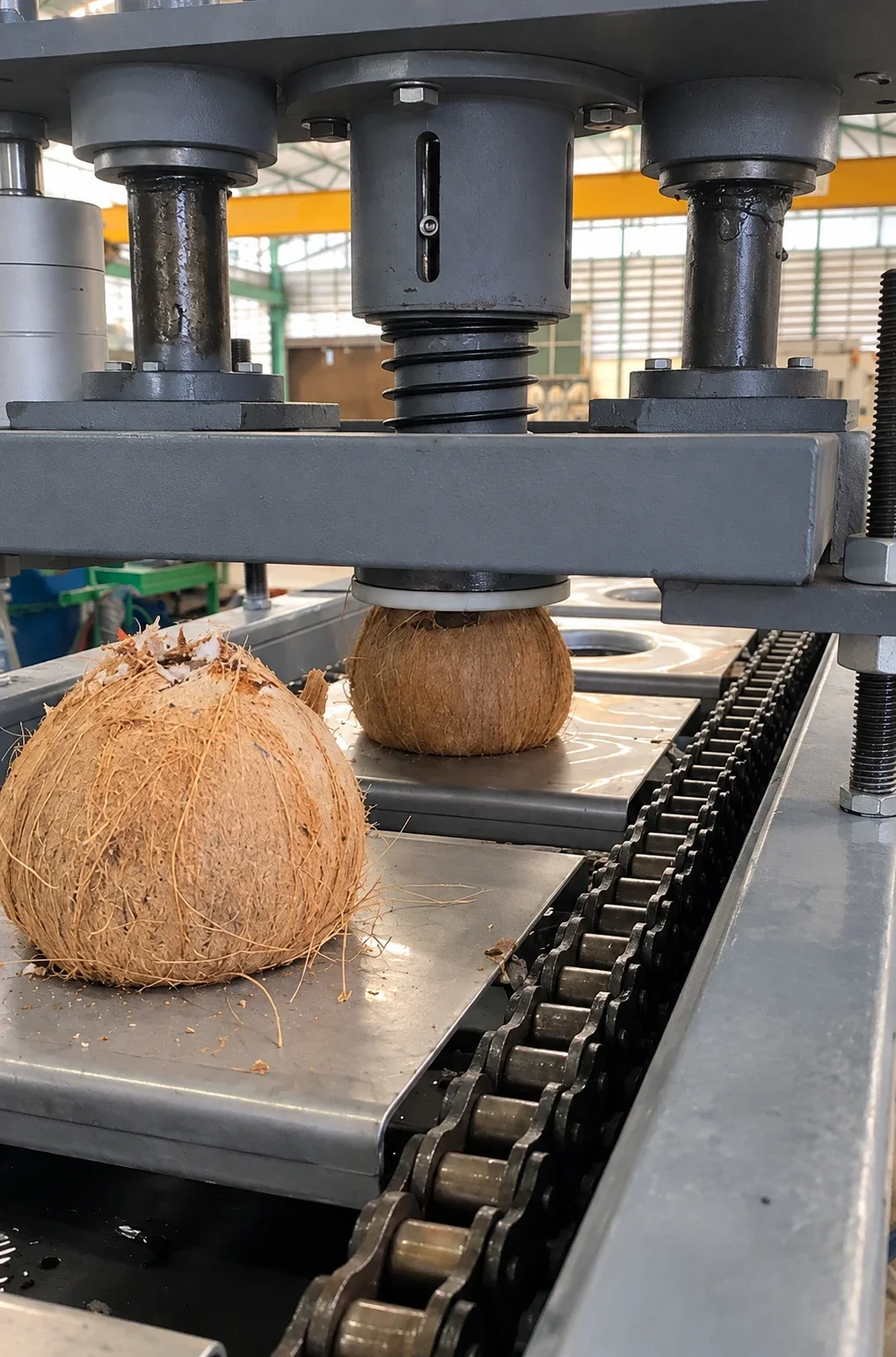

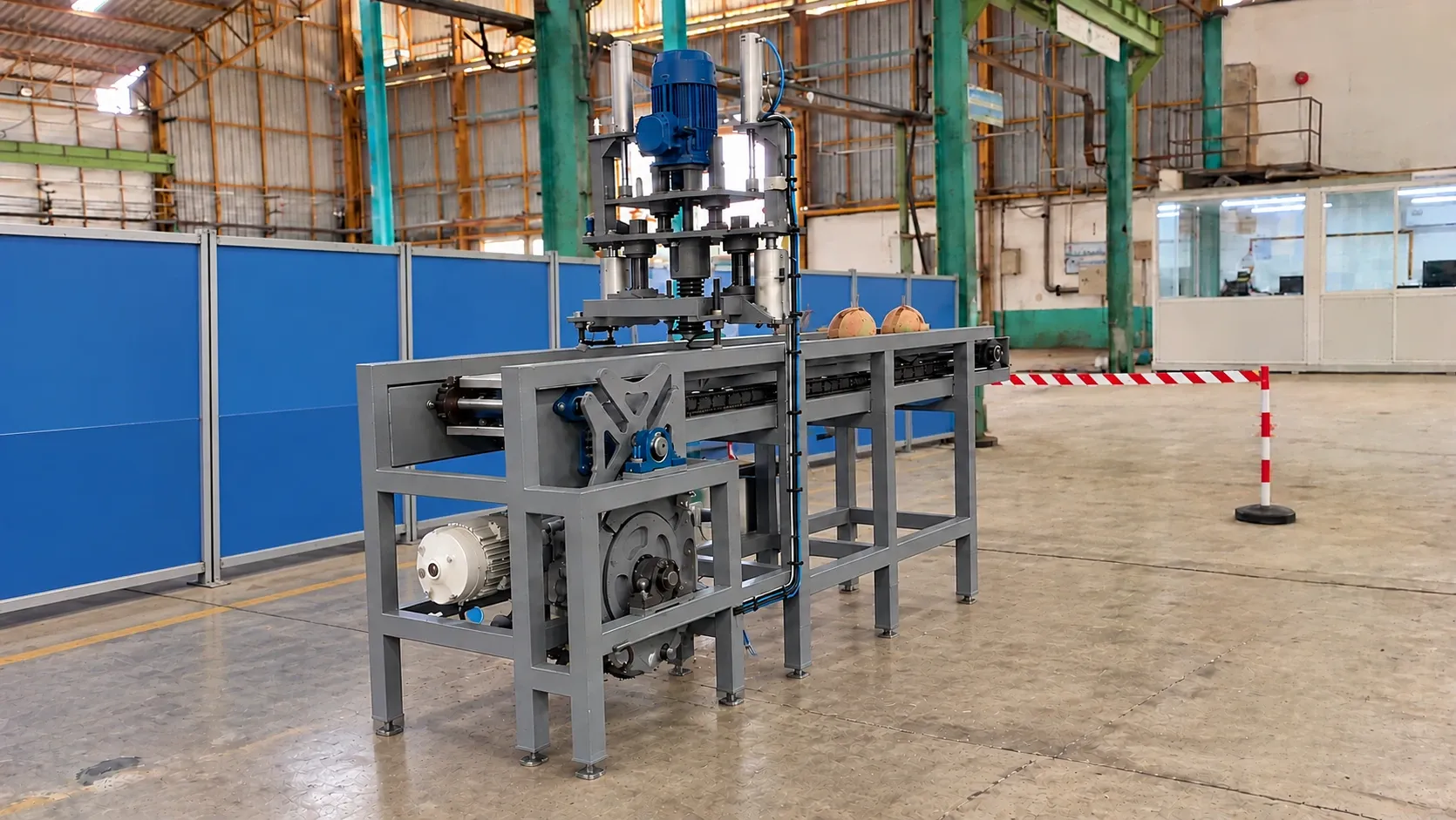

The CD-1H and CD-2H drill de-husked coconuts using single-head and double-head arrangements. Each machine combines drilling with a holding/indexing arrangement, a feed conveyor and a control panel.
CD-1H
| Specification | Value |
|---|---|
| Drilling arrangement | Single head type |
| Processing capacity | 15 coconuts per minute, as per design basis |
| Coconut size | De-husked coconuts, 3.5–6 inch diameter |
| Height variation within the feed | Not exceeding 10 mm for optimal performance |
| Overall dimensions (W × L × H) | 700 × 2,800 × 1,800 mm (approx.) |
| Drill motor | 0.22 kW, with drill bit dia. 19 mm |
| Conveyor motor | 0.37 kW |
| Electrical supply | 380 V, 50 Hz |
CD-2H
| Specification | Value |
|---|---|
| Drilling arrangement | Double head type |
| Processing capacity | 30 coconuts per minute / machine, as per design basis |
| Coconut size | De-husked coconuts, 3.5–6 inch diameter |
| Height variation within the feed | Not exceeding 10 mm for optimal performance |
| Overall dimensions (W × L × H) | 1,600 × 2,800 × 2,270 mm (approx.) |
| Drill motor | 0.22 kW × 2, with drill bits dia. 19 mm |
| Conveyor motor | 0.55 kW |
| Electrical supply | 380 V, 50 Hz |
Feed Conditions and Construction
The listed capacities use the stated design basis: de-husked coconuts with diameters of 3.5–6 inches and height variation not exceeding 10 mm for optimal performance. The listed overall dimensions are approximate.
Frames and general product-contact components are AISI 304 stainless steel. The 19 mm drill bits use stainless tool steel. Drill and conveyor motor ratings are listed separately.
Discuss Your Coconut Preparation Requirements
Describe the coconut condition at the inlet, its size range, the required throughput and the planned handling of the water and coconut halves.
