Heat exchangers transfer heat to or from food and beverage products for heating or cooling.
Applications include cooling liquid products after heat treatment and providing heating or cooling within a processing line.
Equipment selection depends on the product characteristics, required temperatures, flow rate and operating conditions. Connections to tanks, piping and other process equipment are defined for each project.
Contact Us

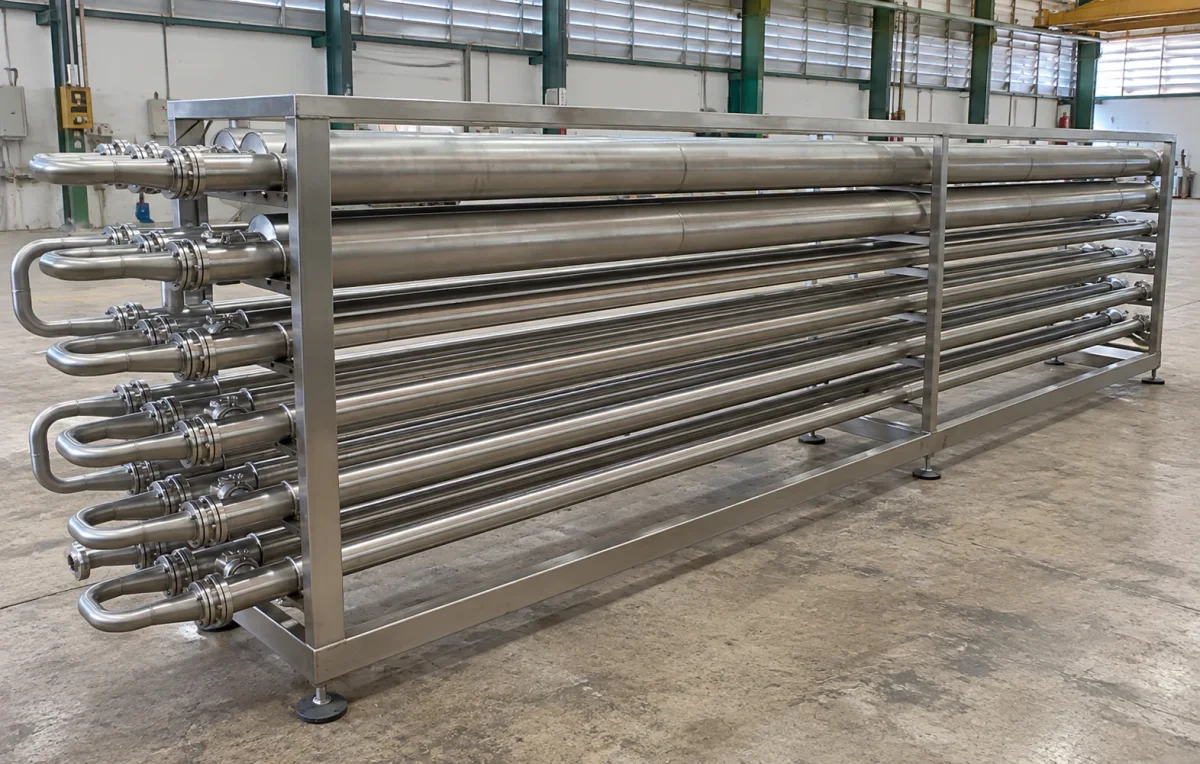

Muninmax designs and manufactures tubular heat exchangers for heating and cooling liquid products. The exchanger can be supplied as standalone equipment or integrated into a processing system, with design based on product characteristics, temperatures, flow rate and operating conditions.

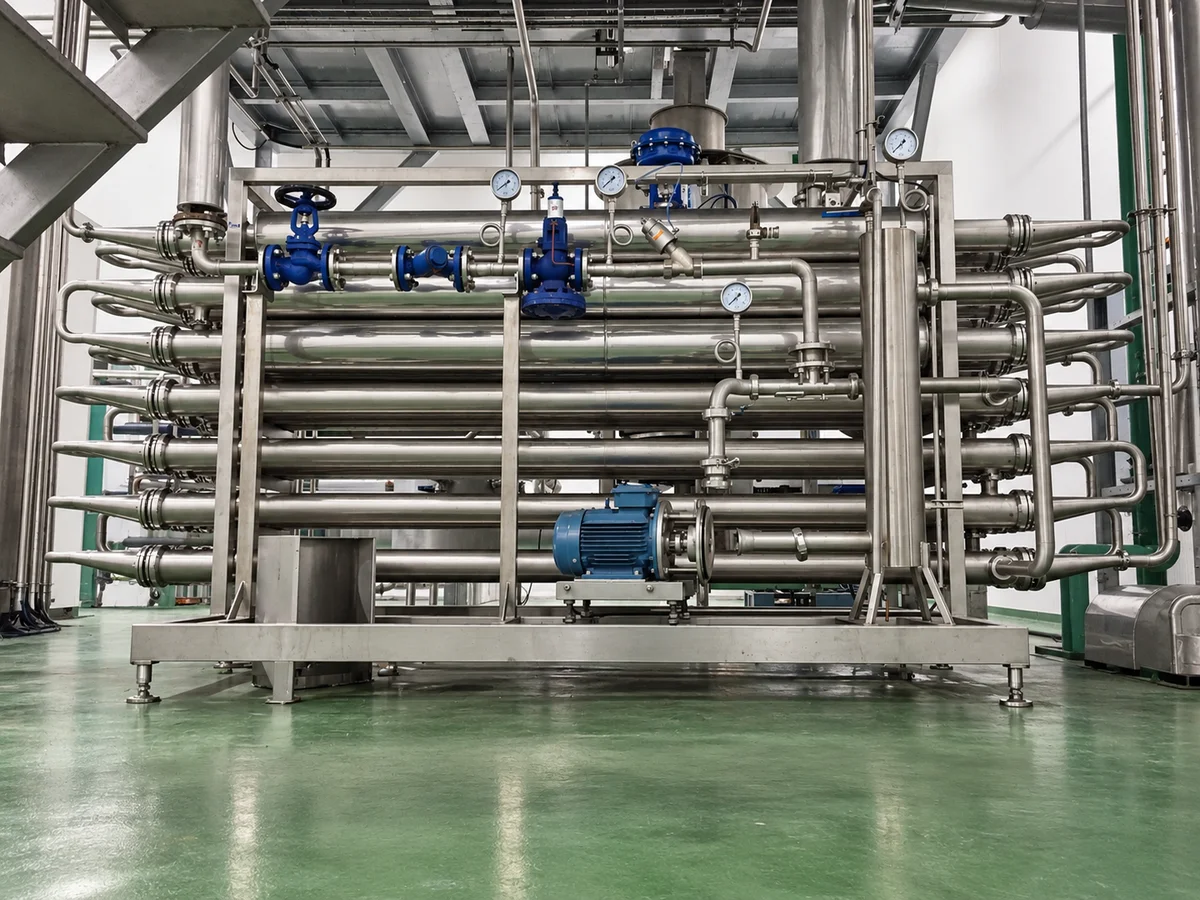

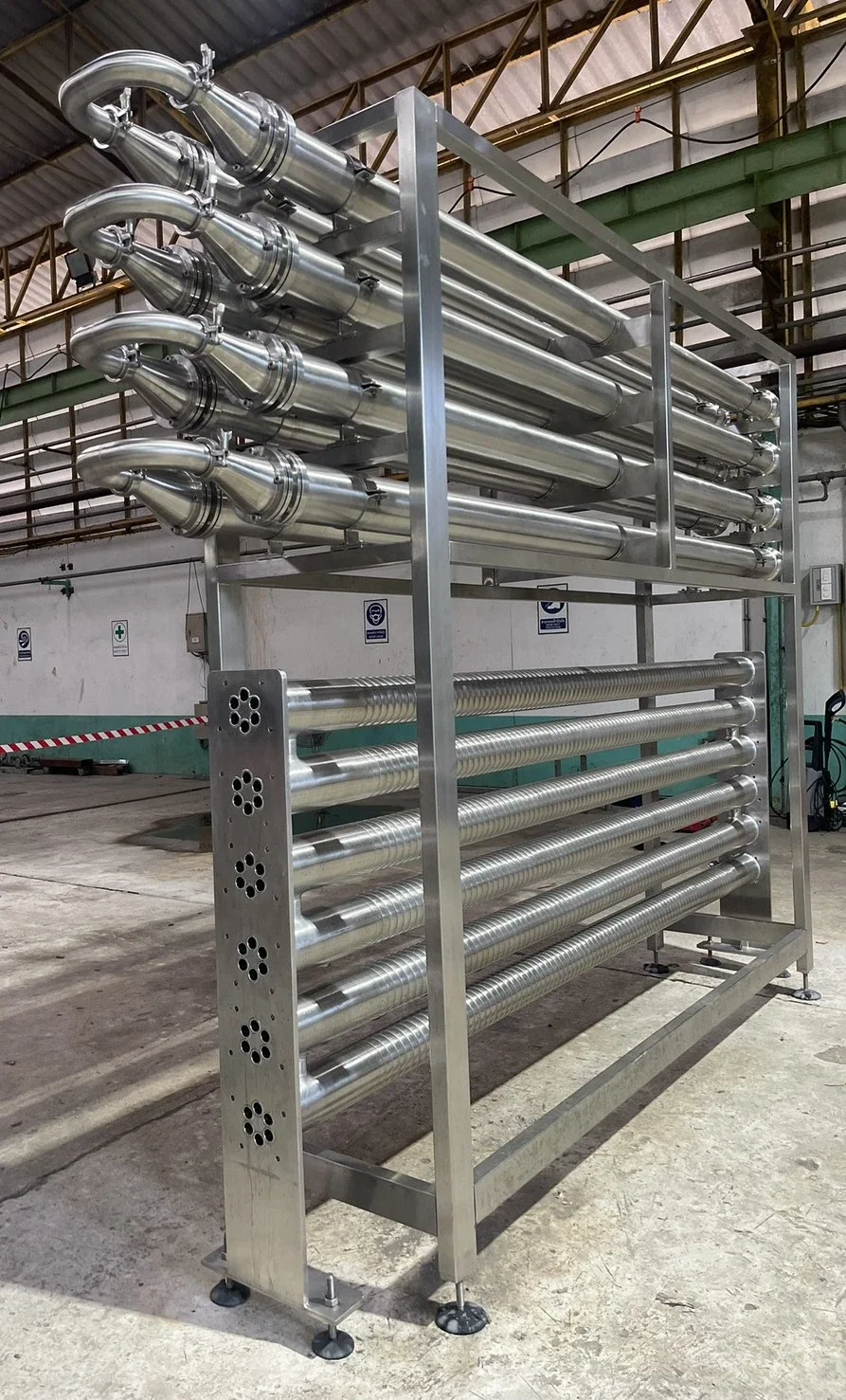

The modular pre-heater uses a welded shell-and-tube arrangement. An RTD PT100 sensor and PID controller regulate temperature. The number of modules is selected for the heating duty.
| Item | Configuration |
|---|---|
| Heat exchanger | Modular, fixed-welded shell-and-tube arrangement |
| Product tube size | 1 inch diameter |
| Shell size | 4 inch diameter, SCH10 |
| Module length | 2–3 m |
| Temperature sensing and control | RTD PT100 with PID controller |
| Number of modules | Determined by the heating duty |
| Hot-water flow control | Piston-type on/off valve with manual bypass |
Steam and process water are required, with electrical supply for instrumentation. Steam pressure and flow are specified for the duty. The hot-water circuit, skid and associated connections are configured as part of the installation.

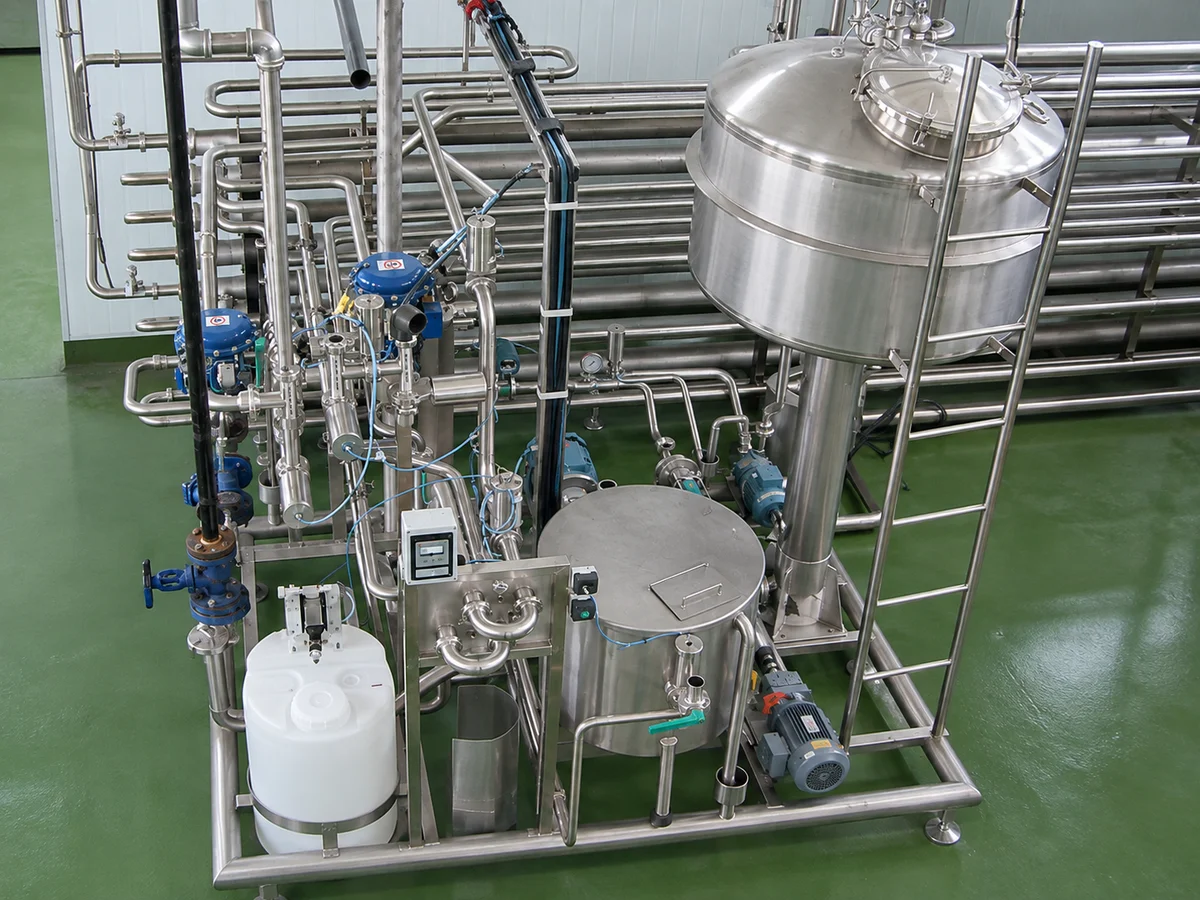

Product can be fed from a storage tank to the heat-exchanger system's buffer tank to support a consistent feed. Connections to tanks, piping and the following process are defined for the project.
Share the product, required flow rate, inlet and outlet temperatures, operating conditions and available utilities. These details establish the exchanger arrangement and module selection.
Muninmax designs and manufactures tubular heat exchangers for heating or cooling liquid products. The design is matched to the product's characteristics and operating conditions, and the equipment can be positioned where temperature control is required in the process.
Tubular heat exchangers can be supplied as standalone equipment or as part of a processing system.
Muninmax recommends feeding product from the storage tank to the heat-exchanger system's buffer tank. This arrangement provides a more consistent product feed and helps achieve more accurate and stable product-temperature control.
Address: 107/1 Moo 5, Wang Phong, Pran Buri, Prachuap Khiri Khan 77120, Thailand.
Tell us about your product, the process or support you need, and the scope you would like Muninmax to cover.
For installation, commissioning or after-sales enquiries, identify the equipment involved and describe the work, issue or support you would like to discuss.
Where available, share your target capacity, packaging format, product characteristics, existing equipment details, site information or factory layout, and any site constraints.
