Pumping & Fluid Transfer

Fluid Handling

MNM fluid handling equipment supports product transfer, CIP circulation and utility-water duties in processing plants. Select the pump range according to the liquid being handled, its contact with the product, the required flow and head or pressure, and the operating conditions.

Choose the Pump Range for Your Duty

Evaporation service, product-contact transfer and CIP circulation.

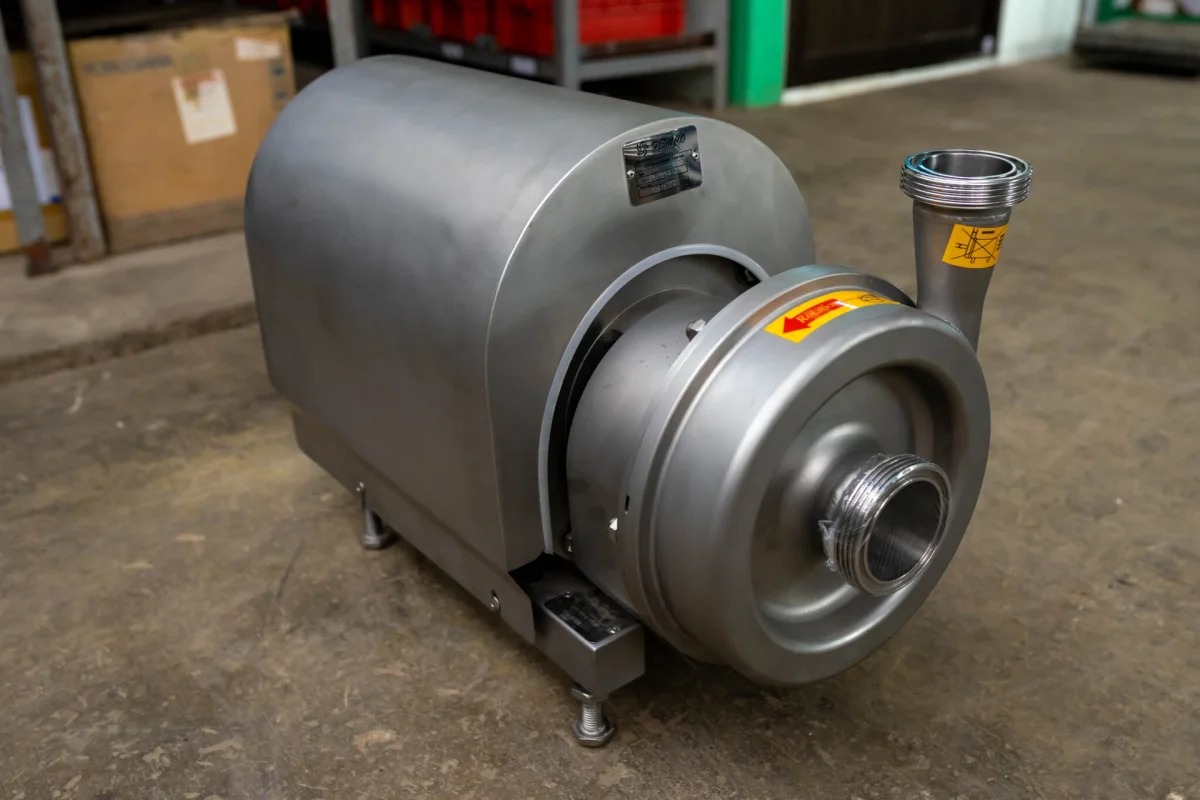

FEC Pumps

Designed for evaporation systems, product transfer and CIP circulation.

Available Motor Power Options

Motor power options describe the available configurations. Required flow, head and operating conditions remain part of pump selection.

FEC Models and Reference Data

FEC 5 is available with 0.55 kW and 0.75 kW motors. The listed dimensions are the same for these two configurations. The listed weight of 41.5 kg applies to the 0.75 kW configuration.

Discuss Your FEC Pump Application

Share the product or CIP duty, required flow rate and head or pressure, operating temperature, installation arrangement and connection requirements. For evaporation service, describe how liquid enters the pump from the evaporator.

FEC 5 Dimensions

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

FEC 10 Dimensions

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

FEC 10 Reference Performance Curves

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

FEC 25 Dimensions

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

FEC 25 Reference Performance Curves

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

FCM Pumps

MNM designs and manufactures FCM pumps for non-product-contact utility applications, including water and hot water. The pump configuration is selected to suit the utility system and required operating duty.

Discuss Your Utility Duty

Tell us whether the pump will handle water or hot water, the operating temperature, required flow rate and head or pressure, and the pipe connections and installation requirements.

FCM Dimensions

Use the lettered drawing, dimensions and source conditions on the dedicated FEC / FCM detail page.

Piston Pumps for Processing

Muninmax designs and manufactures Twin Piston Pumps and Triplex Piston Pumps for food and beverage processing. Discuss product consistency, the presence of pieces, transfer duty, required flow rate and operating pressure to define the pump configuration.

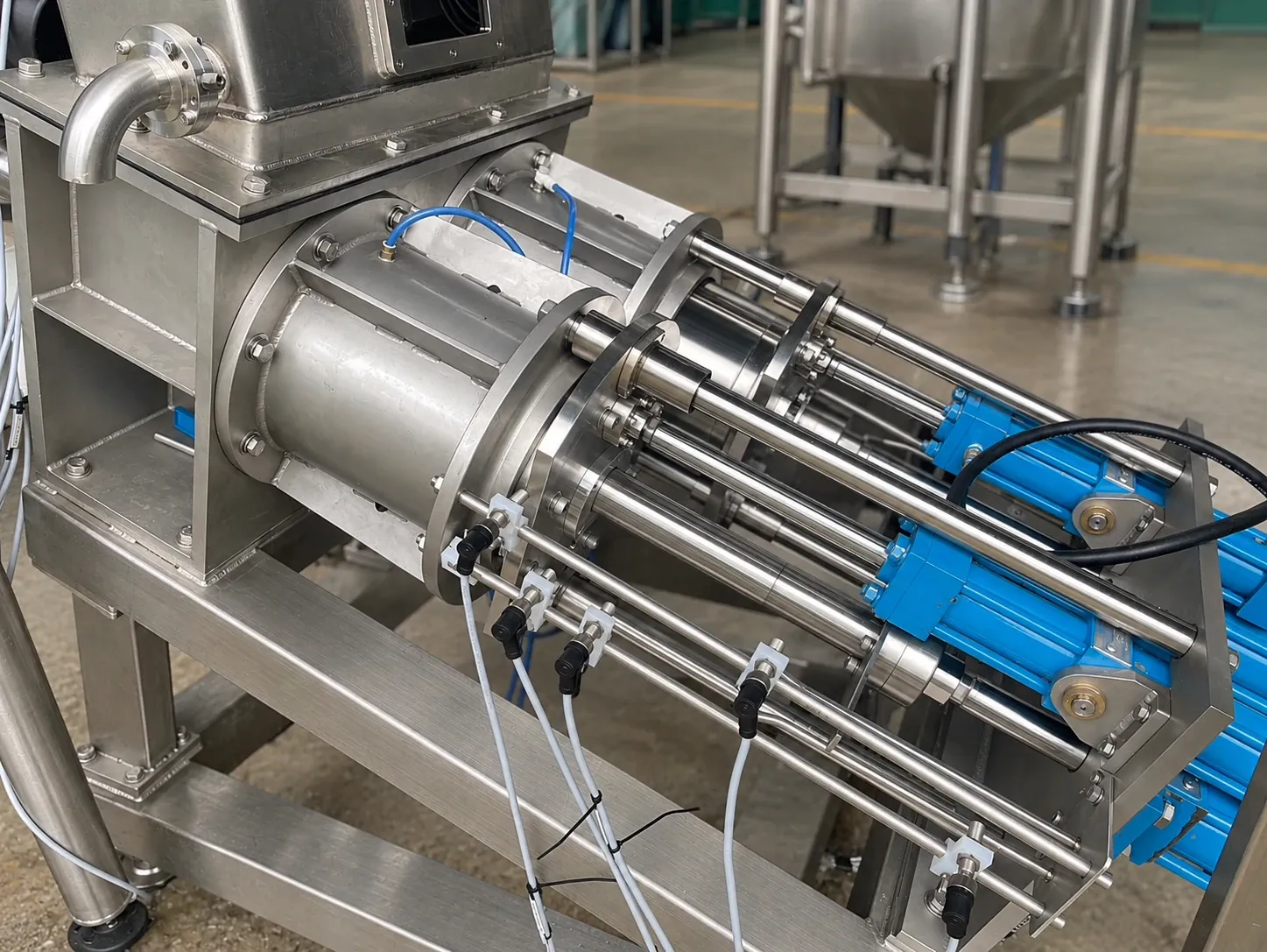

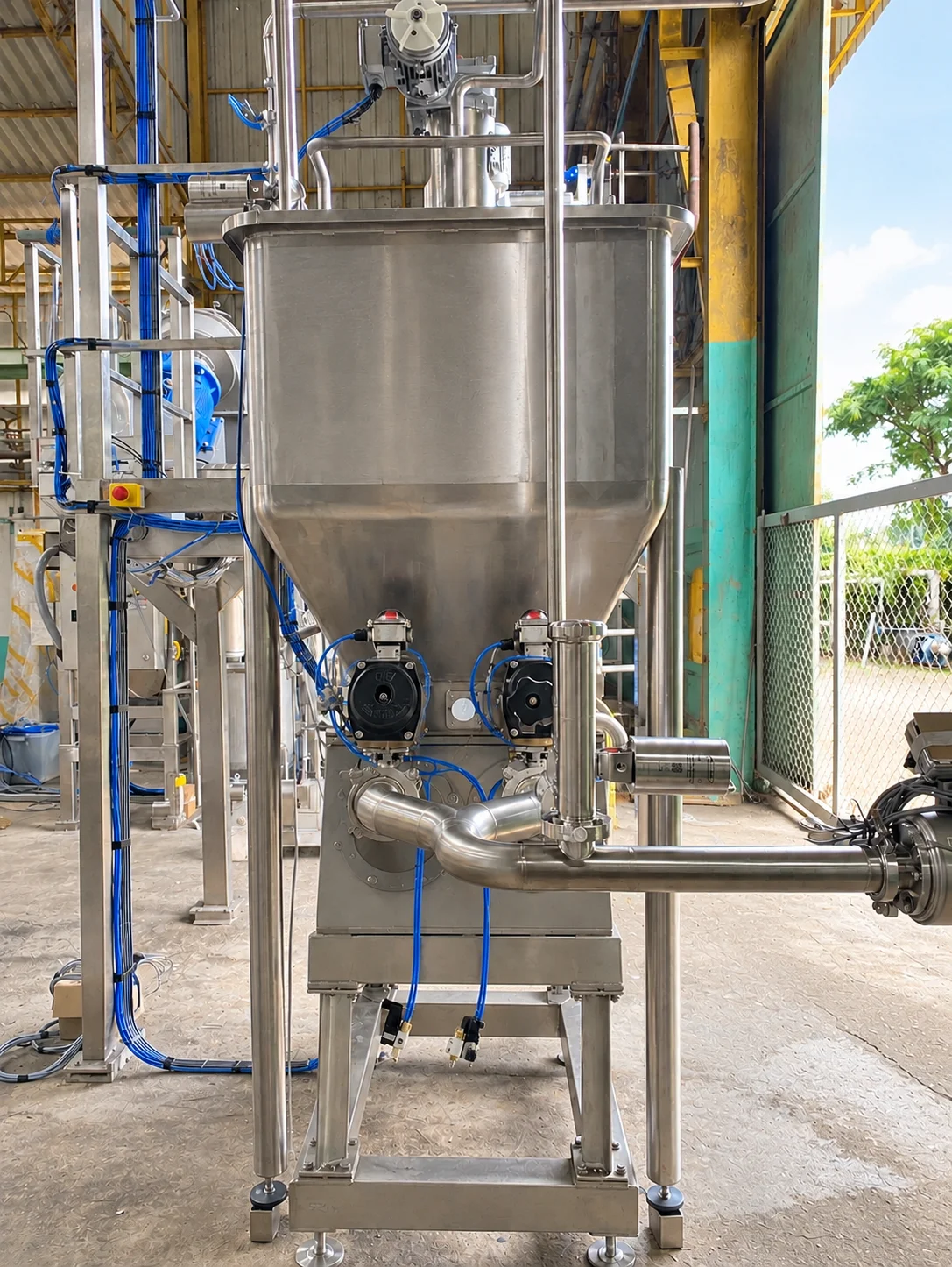

Twin Piston Pump

Designed for delicate products containing pieces, with a focus on gentle handling and a consistent proportion of pieces to liquid during transfer. An open hopper with an integrated feed auger supplies the pumping chamber, while two pistons alternate between receiving and discharging product.

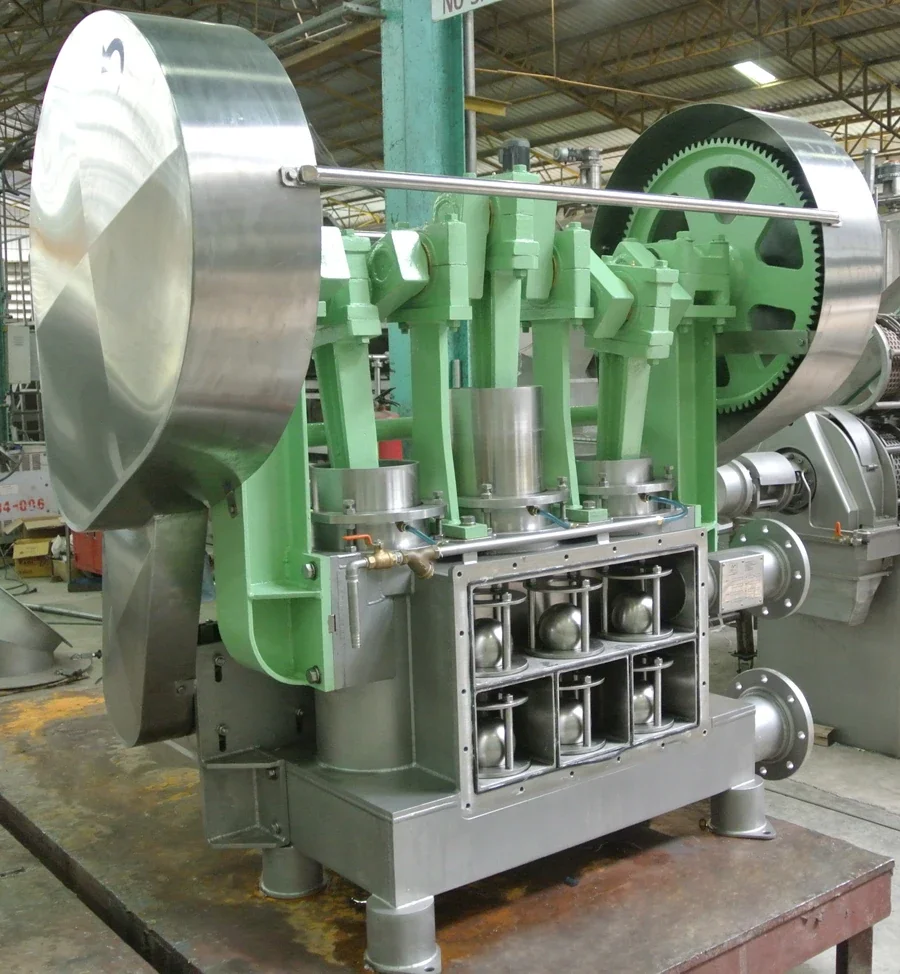

Triplex Piston Pump

A three-piston pump with pressure seals that move with the piston heads. Explore an example configuration and the project requirements used to define pressure, product temperature and product piece size.

Discuss Your Transfer Duty

Describe your product, where it comes from and where it goes next. You can begin the discussion without selecting a pump model.

Prepare a Pump Enquiry

Describe the liquid, transfer or circulation duty, required flow and head or pressure, operating temperature and equipment connections. Include viscosity or product pieces where relevant to product-handling applications.
