Liquid Filling Systems

Liquid filling equipment is selected for the product, container and processing route. The pineapple and coconut examples below describe different arrangements.

Discuss Your Liquid Filling Systems Requirements

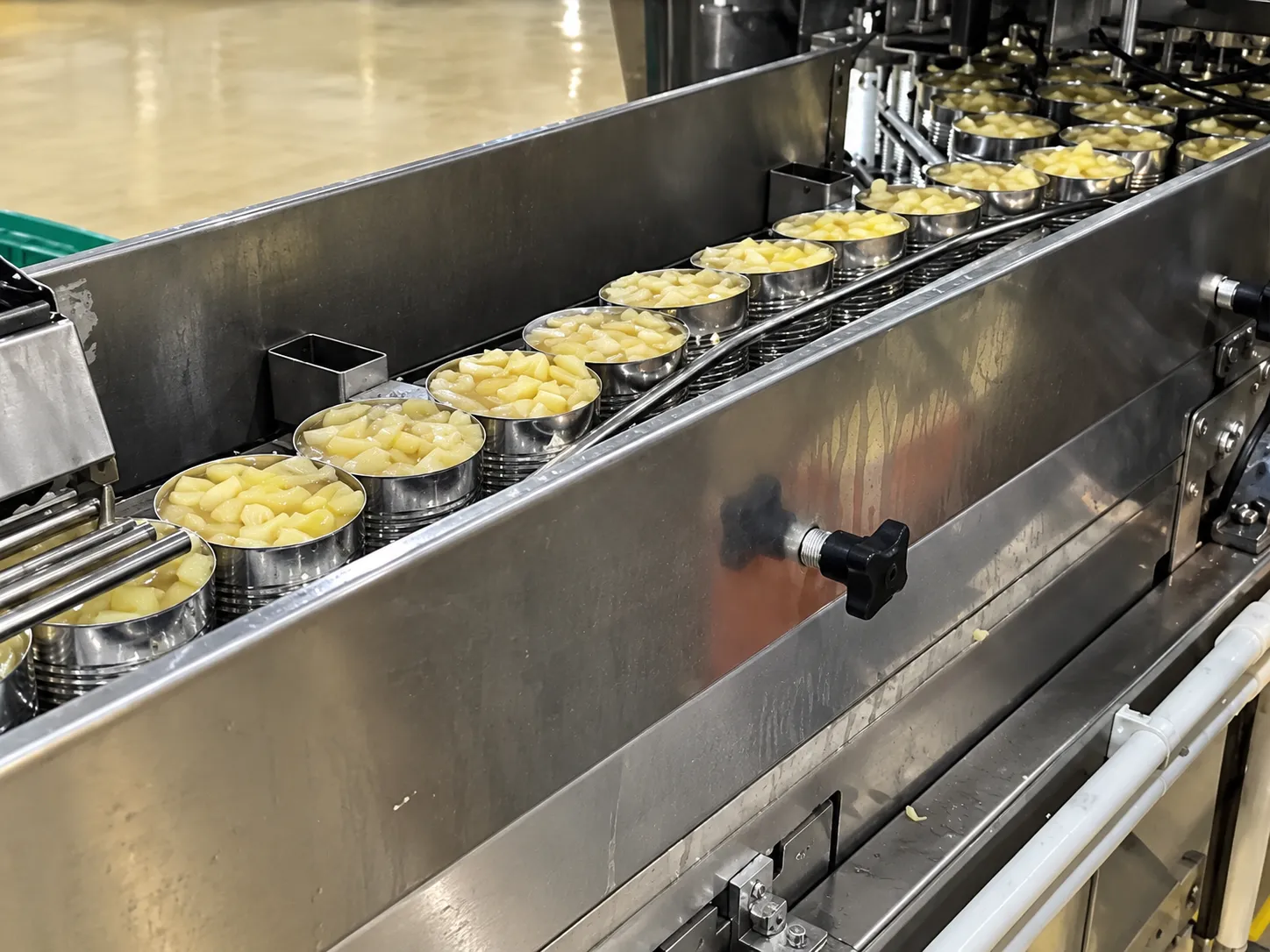

Liquid-filling equipment on a canning line. — Inline liquid filling — equipment example.

Inline Filling for Pineapple Canning

Syrup or pineapple juice is prepared and held in tanks before supply to the Inline Liquid Filler. It adds the packing liquid to cans already containing the selected pineapple fruit form. For juice packing, the juice can come from a separate processing line or another supply system.

Pineapple canning — Inline Filling application

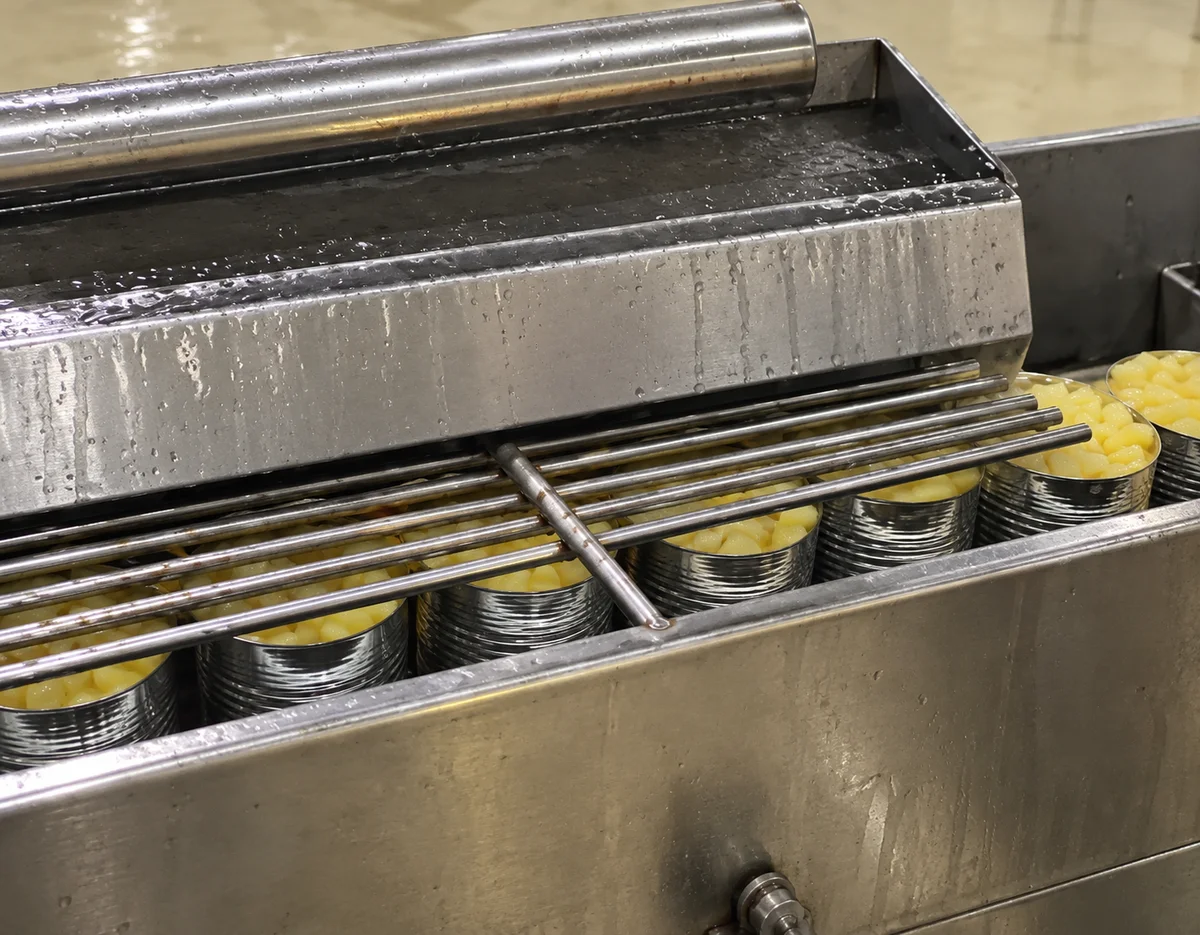

Syrup Filling: Syrup filling section above cans. — Syrup Filling — syrup filling section above cans.

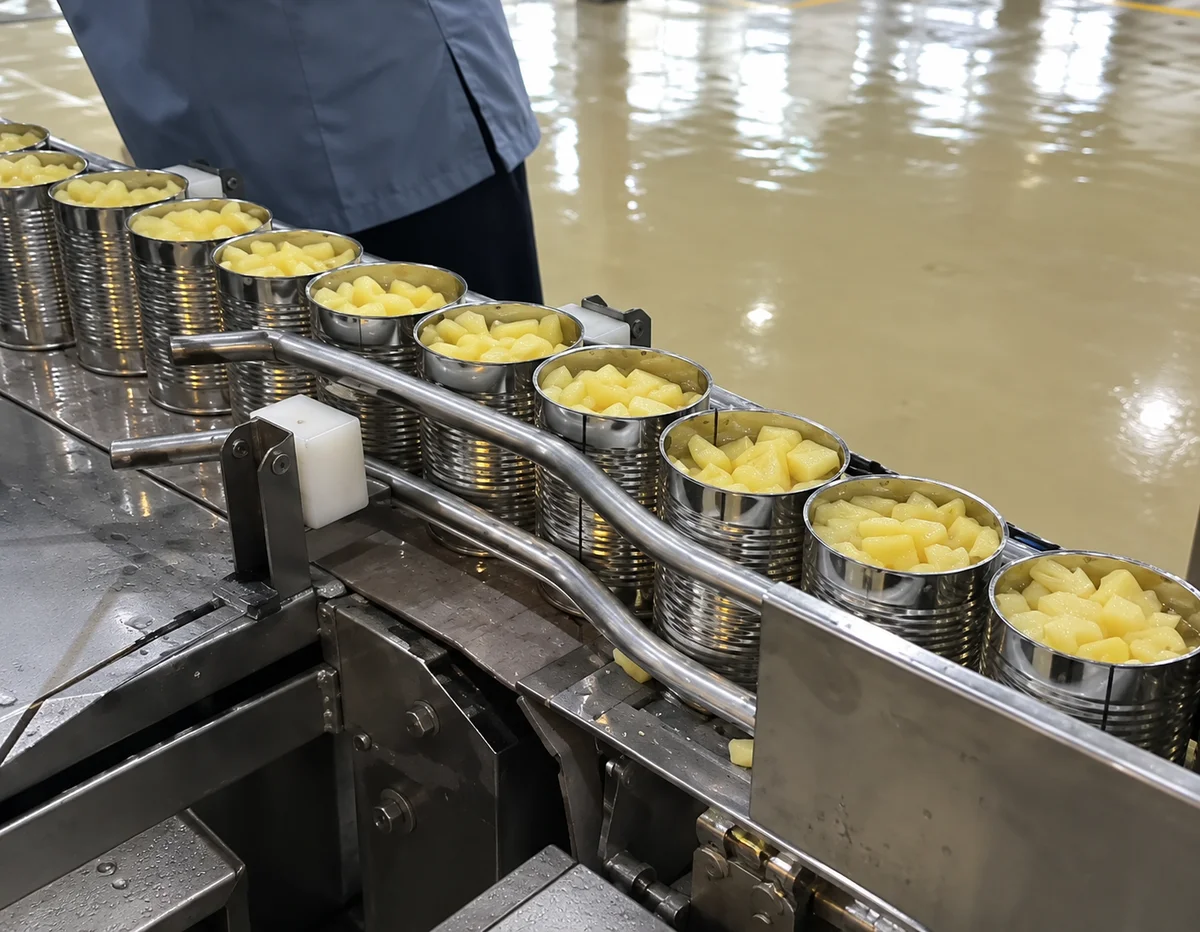

Syrup Filling: Can transfer at the filling section. — Syrup Filling — can transfer at the filling section.

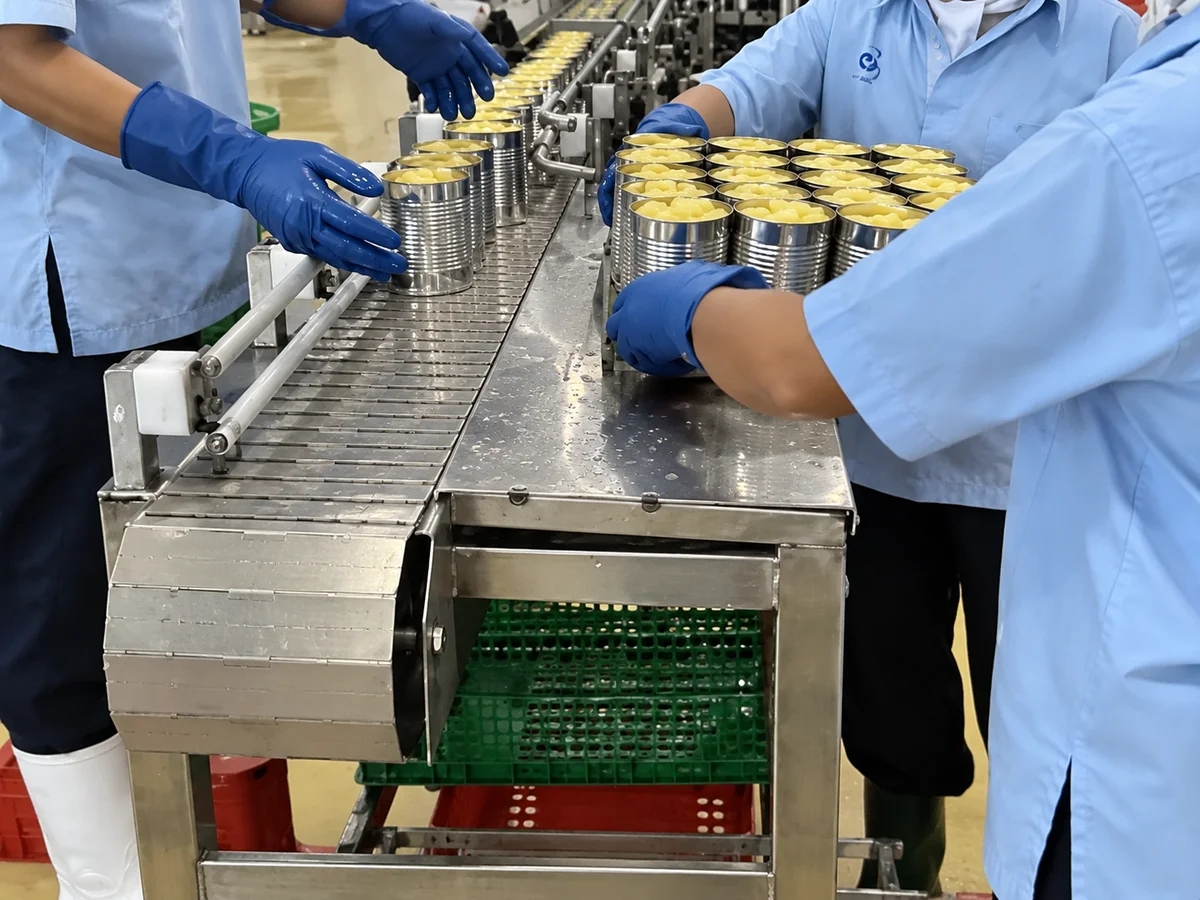

Syrup Filling: Can feed to the syrup filling line. — Syrup Filling — can feed to the syrup filling line.

Exhausting Before Seaming

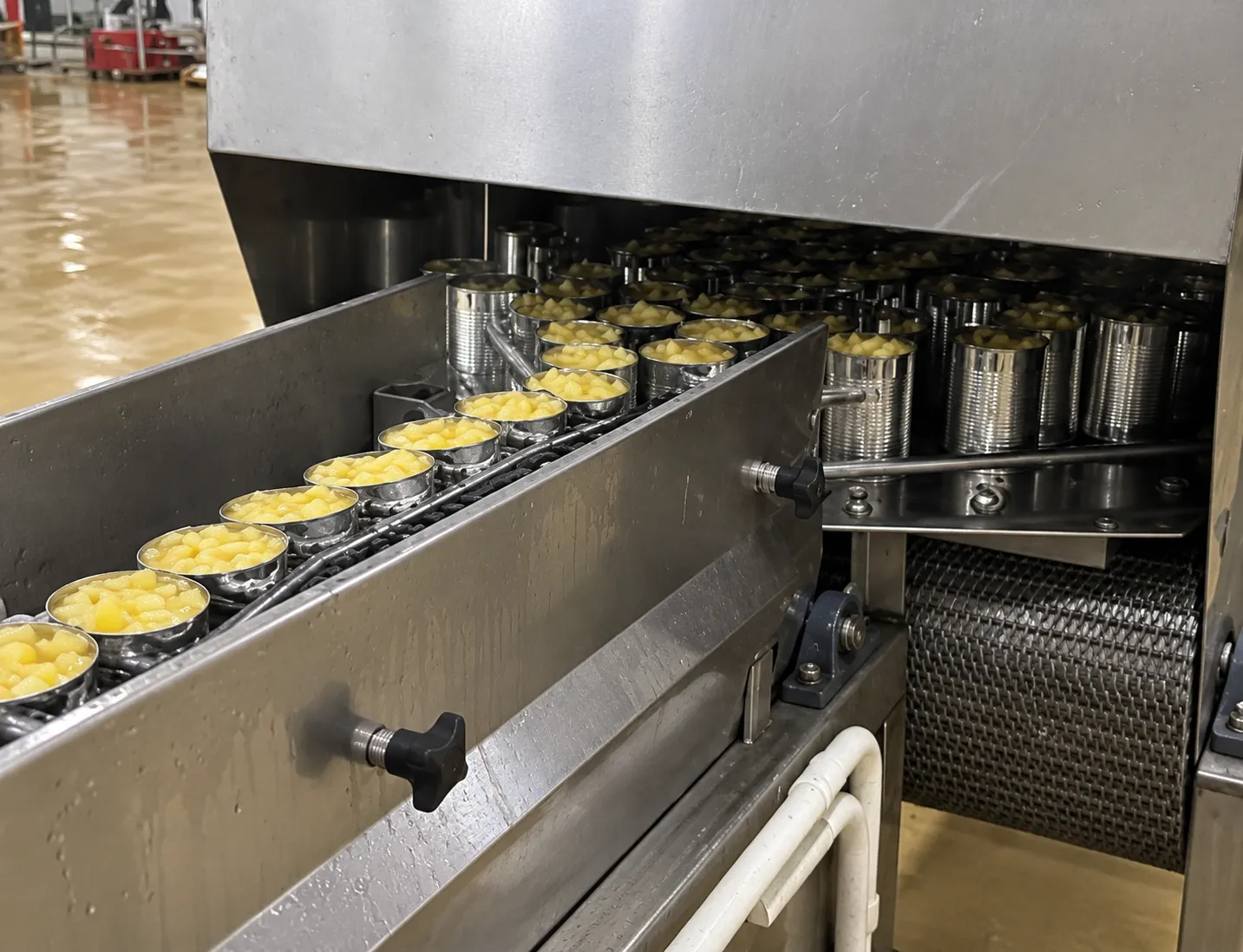

Can conveyor passing through an exhaust enclosure. — Exhaust box — equipment example.

In the pineapple canning route, filled cans pass through the Exhaust Box before the Can Seamer.

Rotary Filling in the Coconut Milk and Cream Route

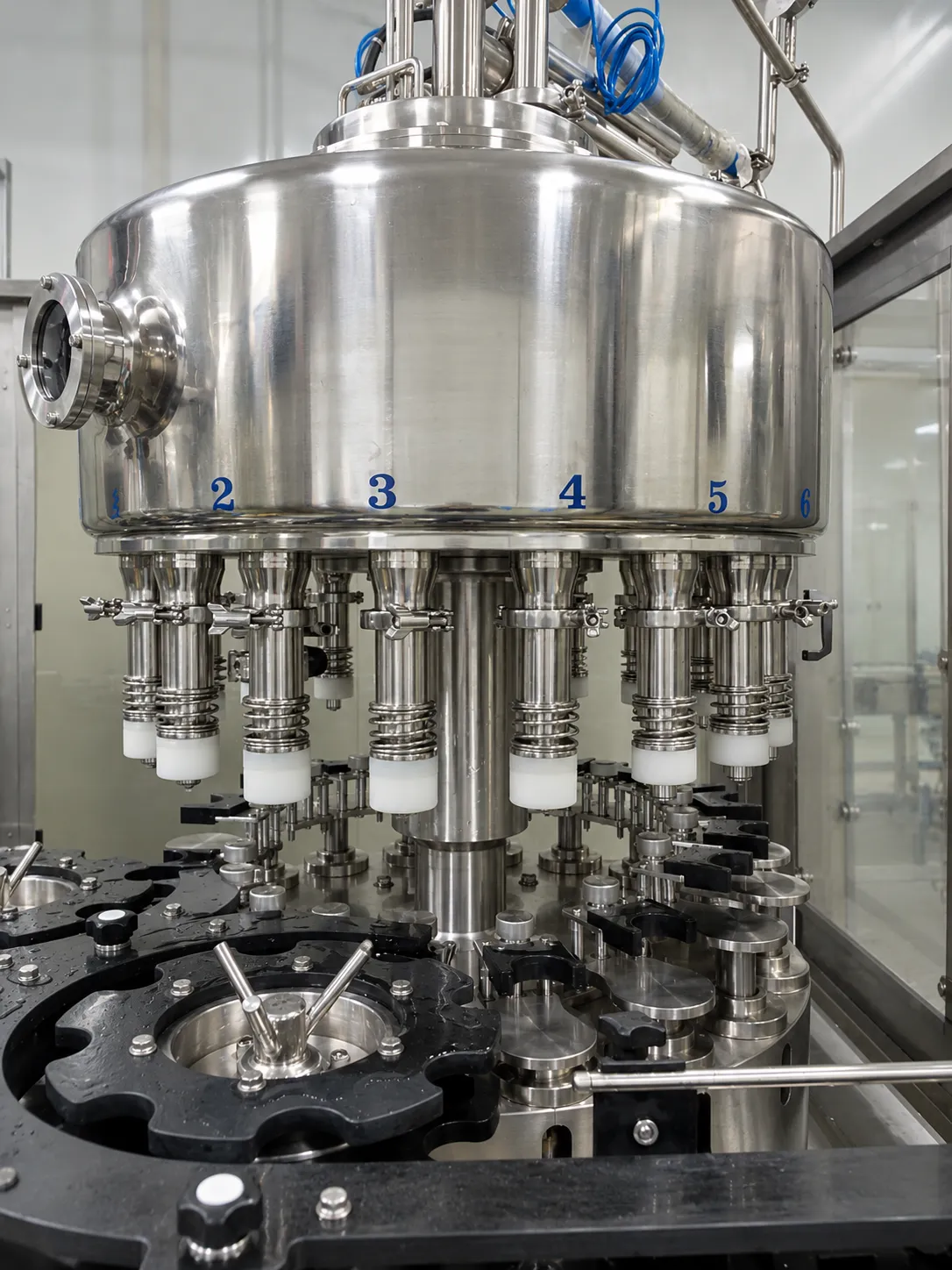

Rotary filling assembly with a product vessel and filling positions. — Rotary filling assembly — equipment example.

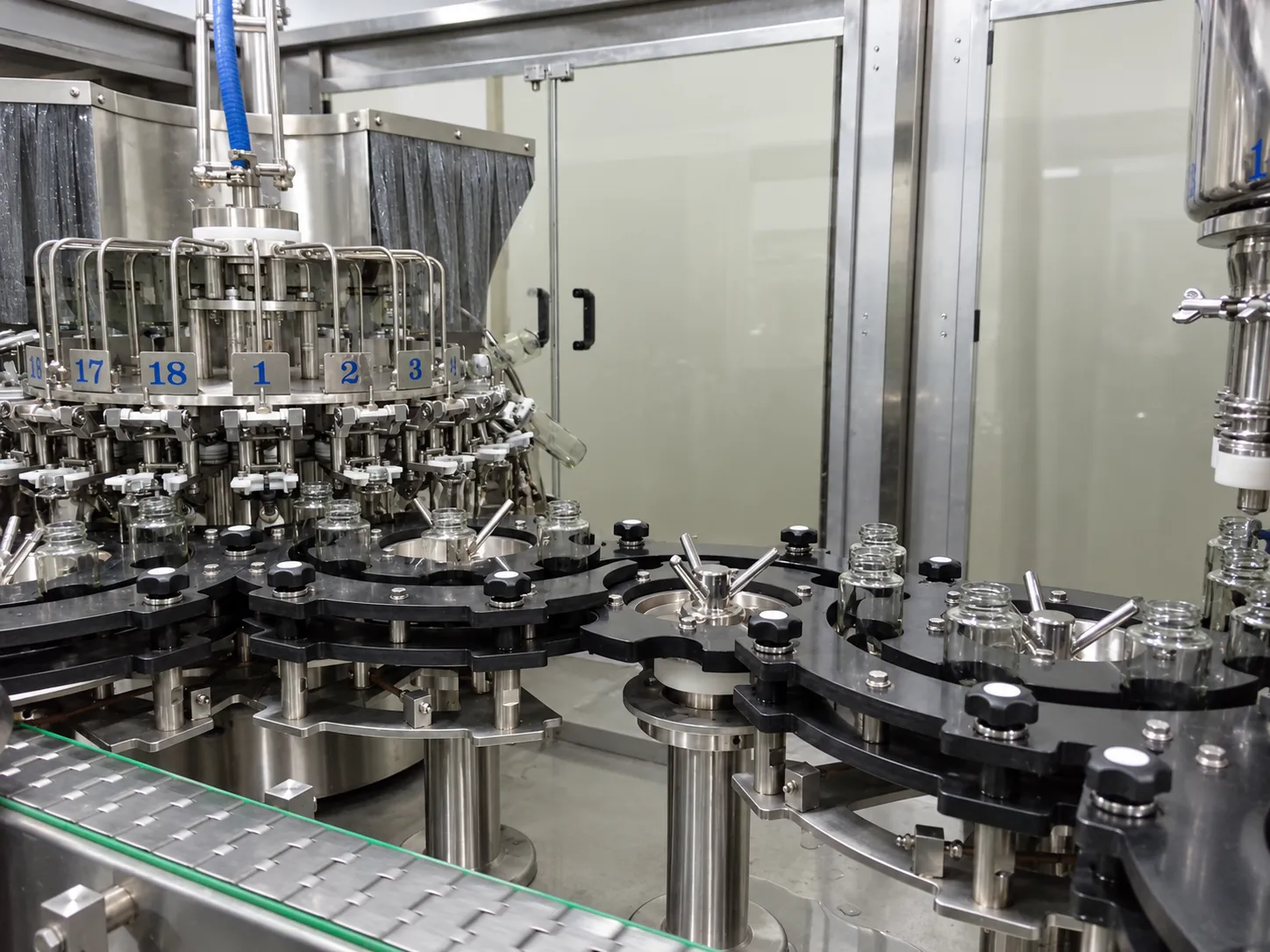

Rotary Liquid Filling: Rotary filling carousel and container transfer. — Rotary Liquid Filling — rotary filling carousel and container transfer.

Rotary filling follows homogenization. Empty cans pass through depalletizing, washing and loading before the filler. Filled cans proceed to seaming and the selected retort process.

Coconut processing — Rotary Filling application

The filling and exhausting stages are defined for their respective lines. The pineapple Exhaust Box arrangement is not imposed on the coconut rotary-filling route.

Plan Your Filling Stage

Tell us the product, filling duty, container size, required throughput and preceding and following process. Include existing equipment and connections where known.
