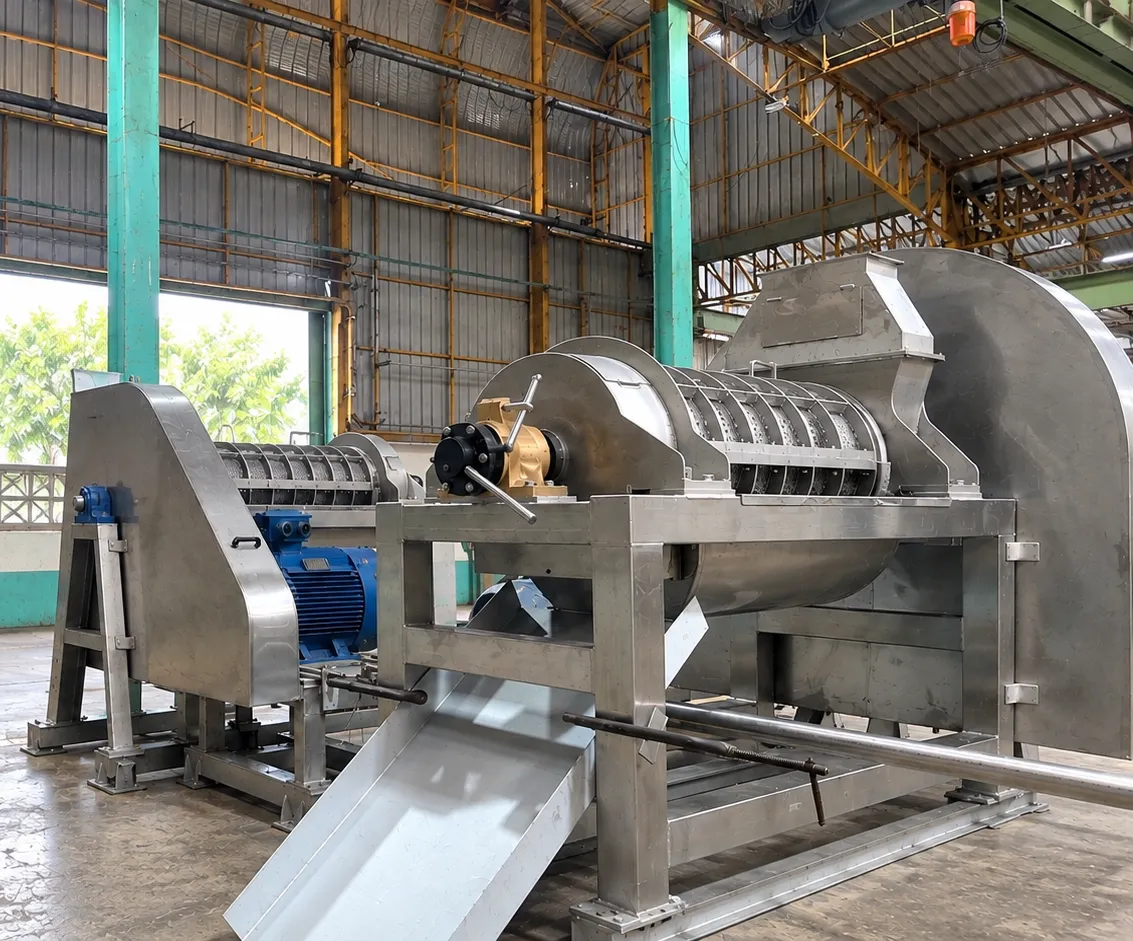

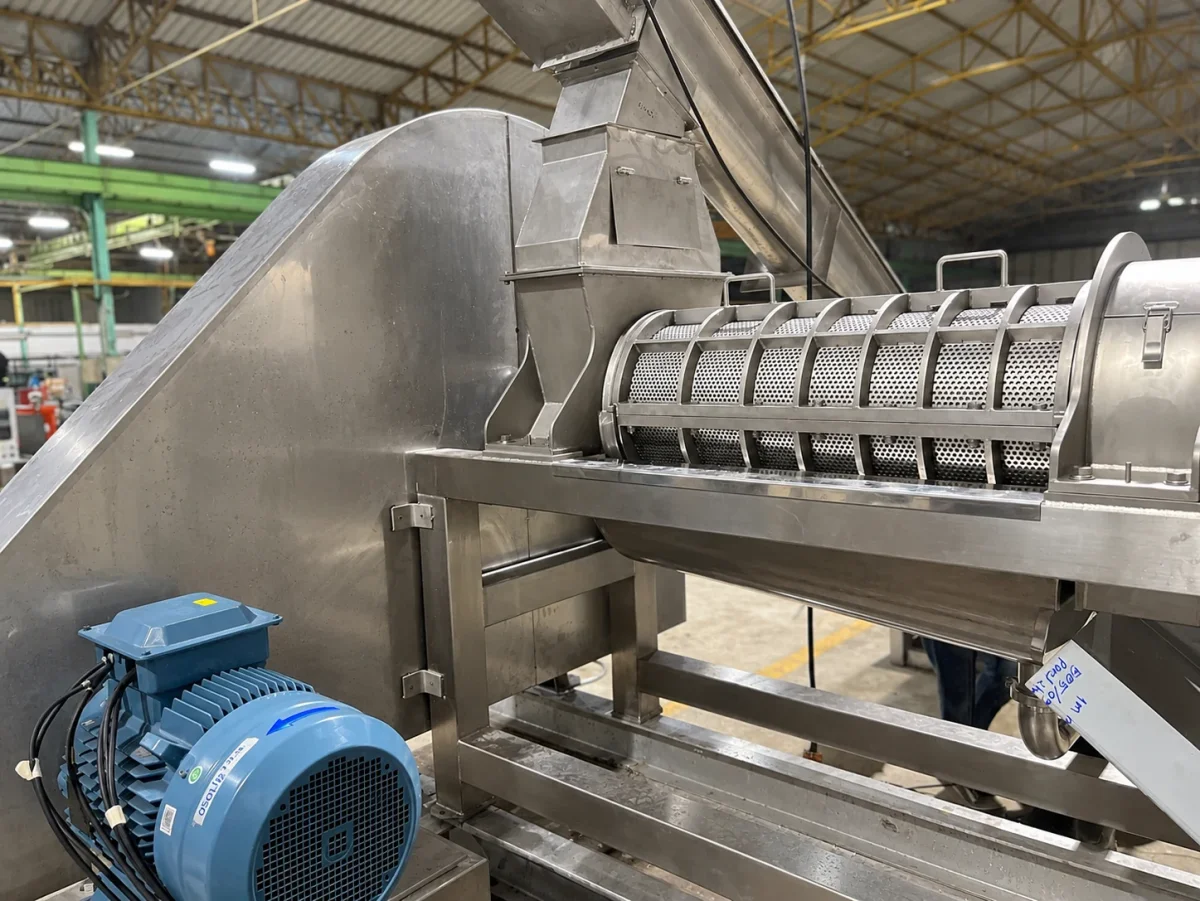

Super Horizontal High Pressure Extractor — SHHP
Muninmax designs and manufactures HHP and SHHP extraction equipment for defined material and pressing duties. These are separate equipment families, with model selection based on the feed condition and the intended extraction stage.
Discuss SHHP requirements
SHHP-350D

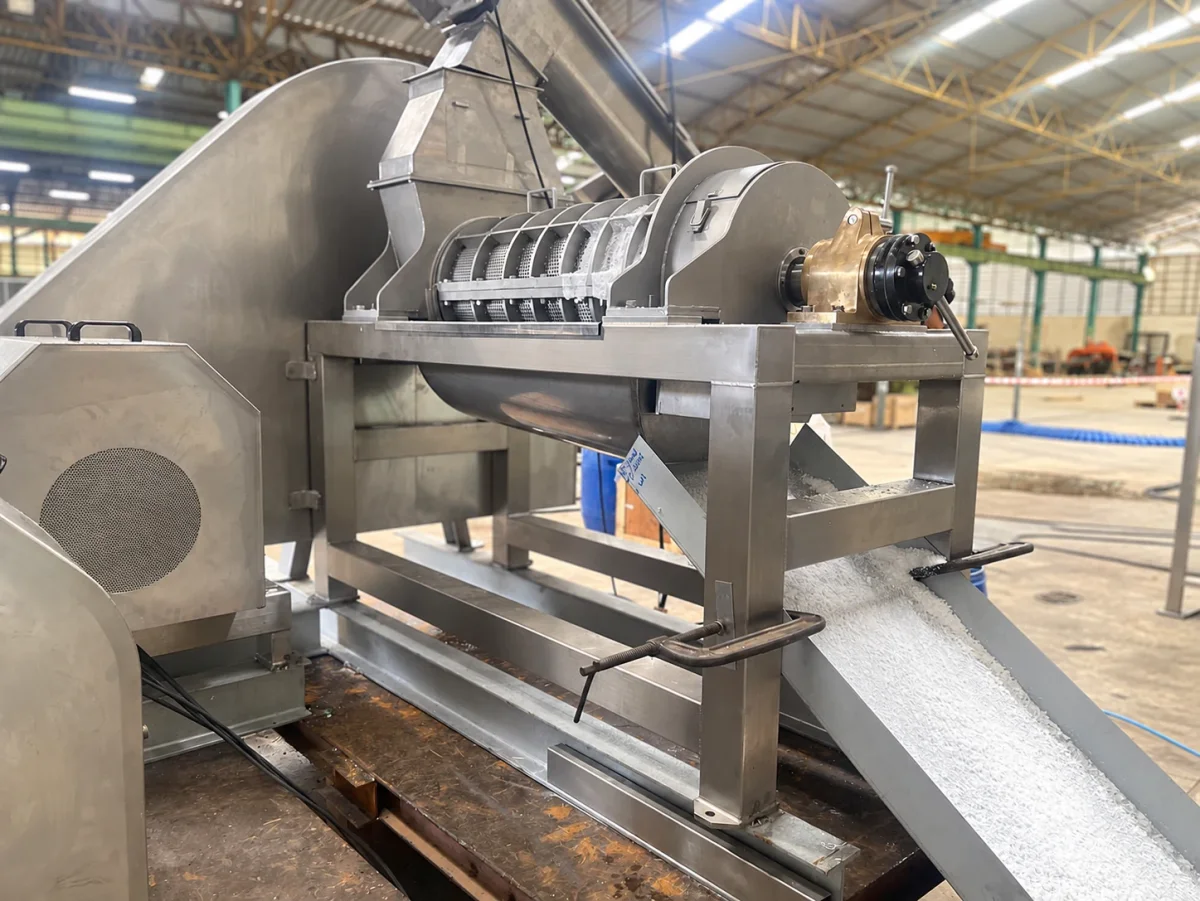

The SHHP-350D serves coconut and fine-particle pressing applications. It can form part of a second or third extraction stage; its throughput depends on the material entering the machine.
Capacity by Feed Condition
| Feed condition | Processing capacity |
|---|---|
| Soft or easily pressed material | 5 t/h |
| Residue that has already undergone pressing | 2–3 t/h |
These figures describe material throughput, rather than extracted liquid output or total line capacity.
Specifications
| Specification | Value |
|---|---|
| Diameter | 350 mm |
| Main motor power | 30 kW |
| Screw shaft speed | 220–250 RPM |
| Drive | Pulley and V-belt |
| Overall dimensions (L × W × H) | 2,313 × 2,049 × 1,579 mm |
| Standard electrical supply | 380 VAC / three-phase / 50 Hz |
| Machine electrical control panel | Included as standard |
Pulley sizes are selected before operation to establish the required screw speed within the stated range. The machine then operates at that selected speed. Screen opening size is selected for the raw material and pressing duty. Electrical voltage and frequency can be configured to suit the customer's supply.
Discuss Further Extraction
Tell us the raw material, the preceding process, the condition of the feed and the required throughput. These details establish the basis for selecting an HHP or SHHP arrangement.
