Vertical High Pressure Extractor — VHP

Muninmax designs and manufactures Vertical High Pressure Extractors that use a vertical screw for further pressing of residue. They serve duties where additional liquid recovery or lower residual moisture is required. Selection considers the raw material and the condition of the feed from earlier stages.

Vertical extraction assembly with open covers and a cylindrical screen. — Vertical extraction assembly — representative equipment.

Further Pressing with a Vertical Screw

The capacities below retain their specific pomace feed basis. Required floor space is listed separately from machine height.

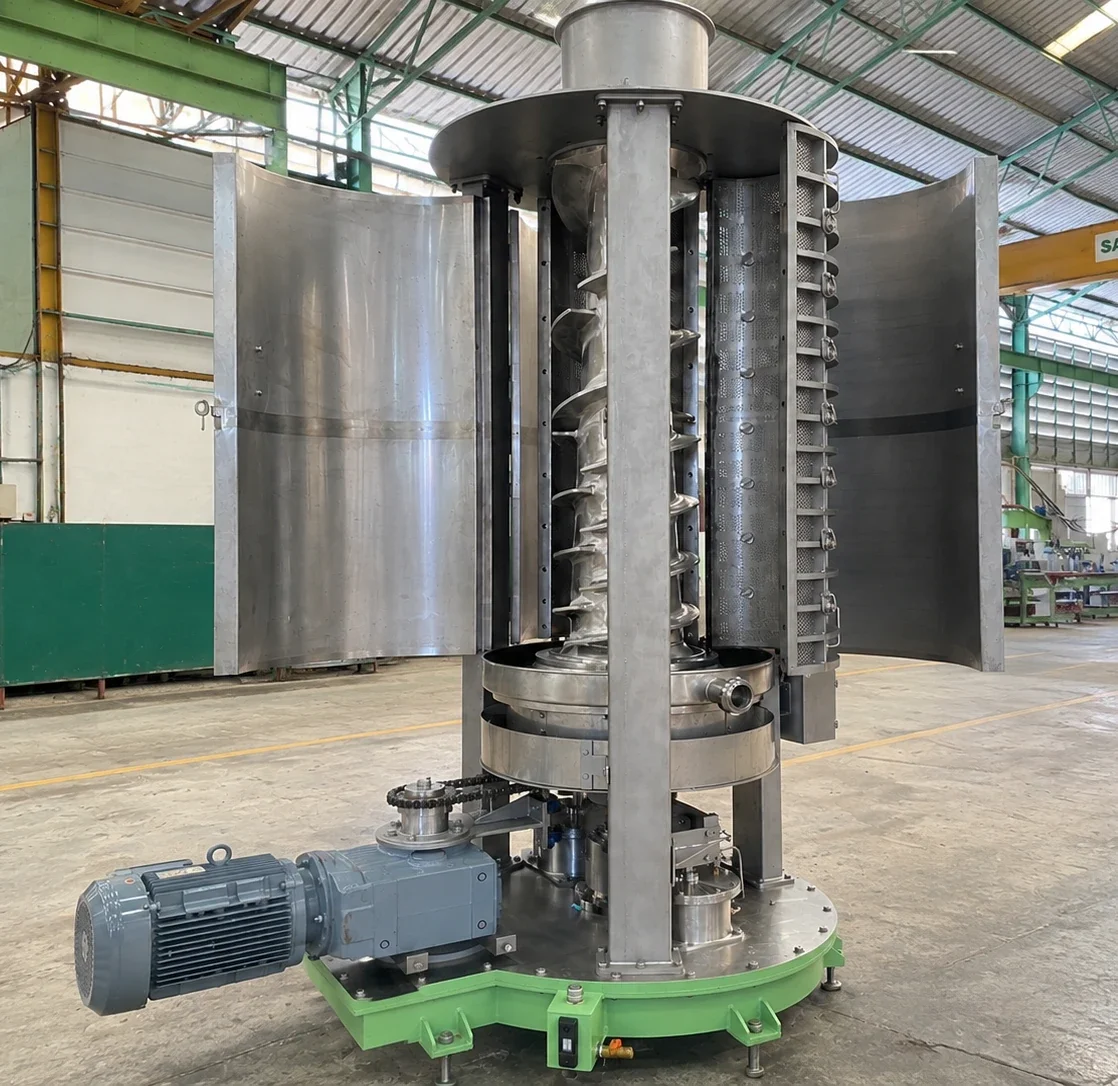

Vertical High Pressure Extractor — VHP: Vertical extractor with drive and base. — Vertical High Pressure Extractor — VHP — vertical extractor with drive and base.

Compare models

Scroll to compare models

Vertical High Pressure Extractor model comparison
Specification	VHP 420D	VHP 730D
Processing capacity	1.8–2 t/h of pomace from 1st or 2nd stage	5 t/h of pomace from second stage
Required floor space	2.0 × 2.0 m	2.5 × 2.5 m
Height	2.5 m	4.01 m

VHP 420D

VHP 420D specifications
Specification	Value
Processing capacity	1.8–2 t/h of pomace from 1st or 2nd stage
Required floor space	2.0 × 2.0 m
Height	2.5 m
Spindle speed	9 RPM
Motor	11 kW main motor with reduction gearbox and inverter

VHP 730D

VHP 730D specifications
Specification	Value
Processing capacity	5 t/h of pomace from second stage
Required floor space	2.5 × 2.5 m
Height	4.01 m
Spindle speed	9 RPM
Motor	40 HP, reducer gear

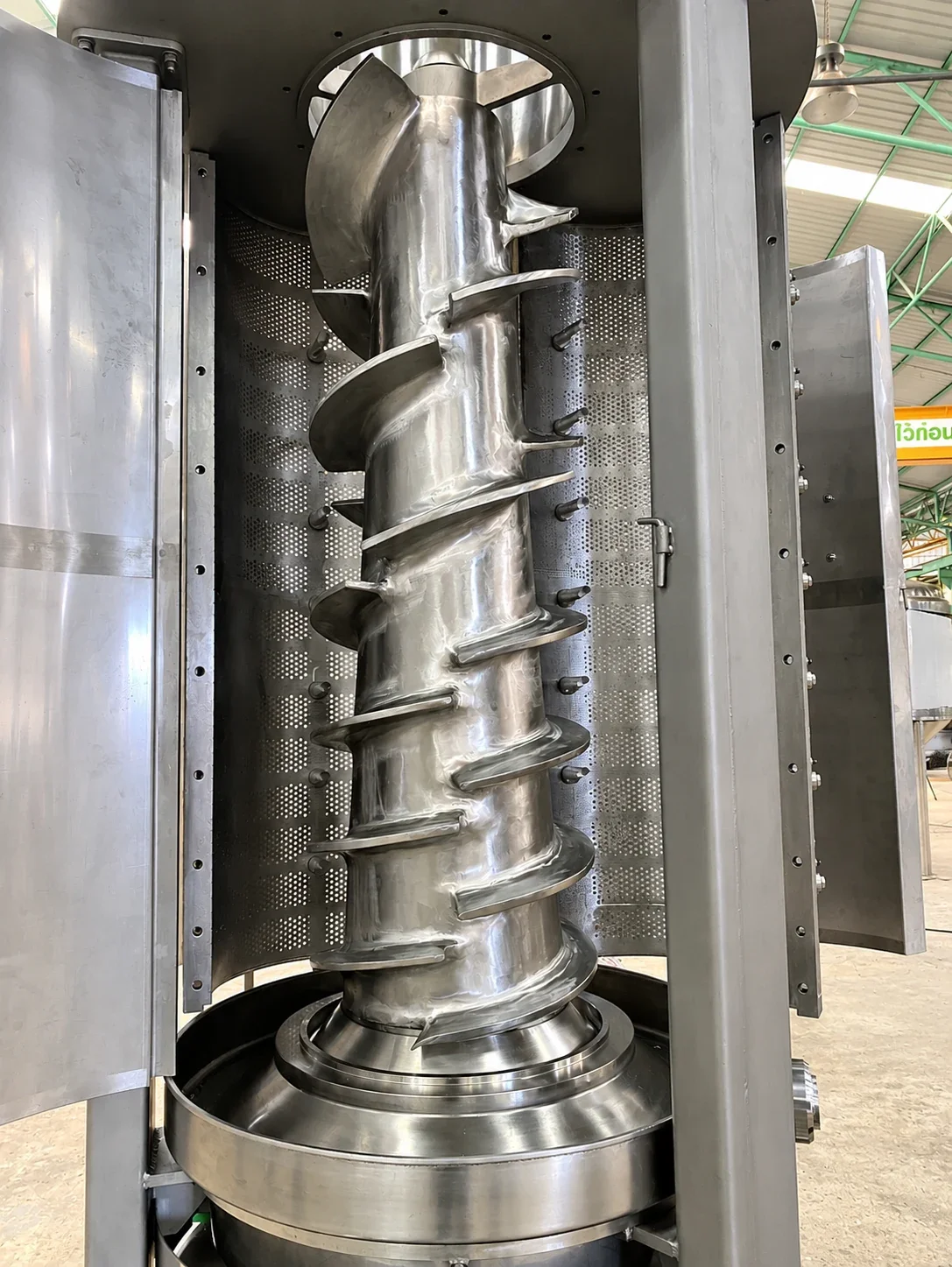

Vertical High Pressure Extractor — VHP: Vertical extraction screw exposed. — Vertical High Pressure Extractor — VHP — vertical extraction screw exposed.

Construction and Discharge

Product-contact parts are made of AISI 304 stainless steel. The VHP 420D uses cast iron in its internal rotor core or supporting structure, outside the product-contact area. Both listed models use a turntable arrangement for residue discharge.

The electrical specification for both models is 380–460 VAC, three-phase, 50–60 Hz.

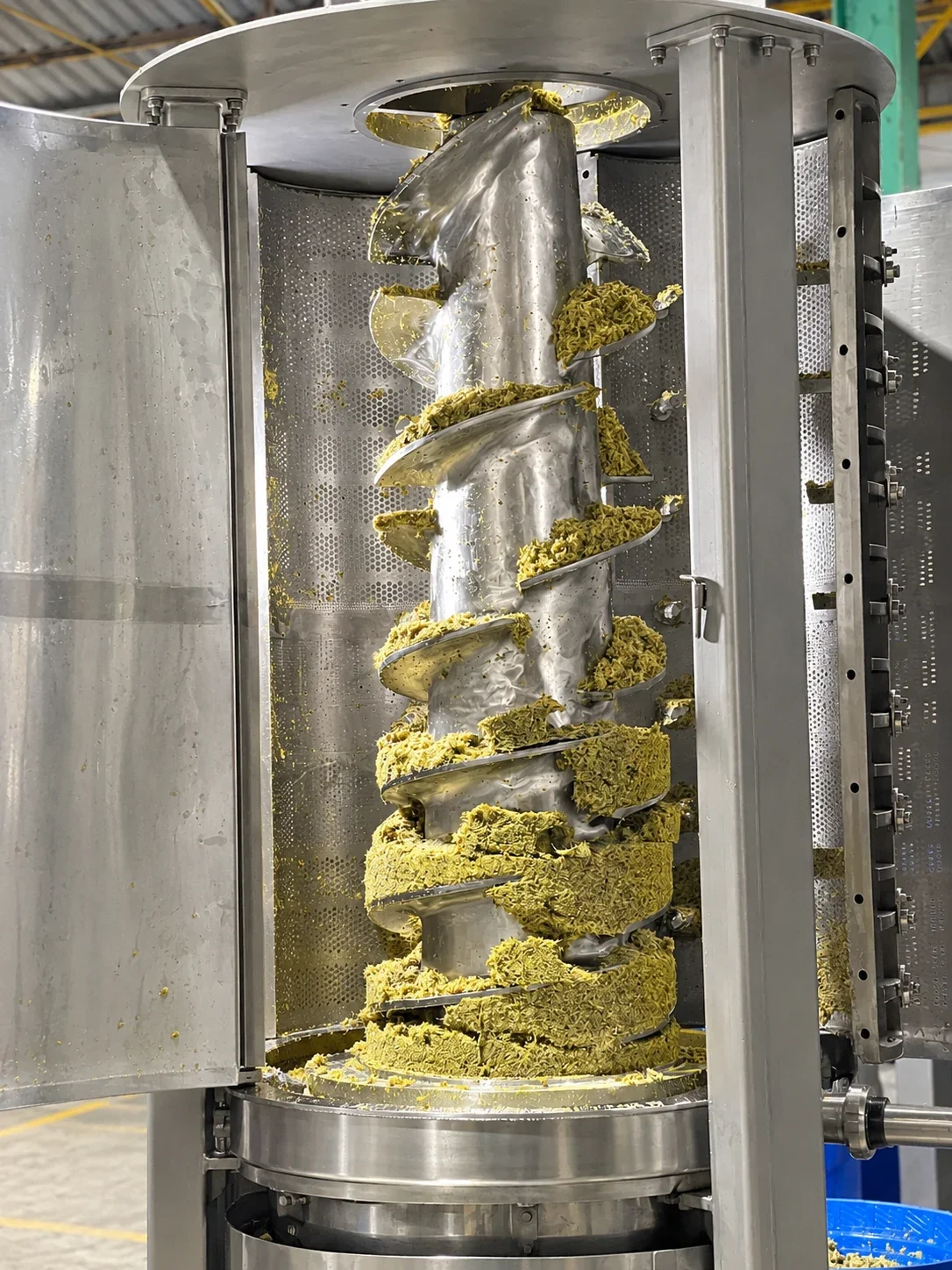

Vertical High Pressure Extractor — VHP: Vertical extraction screw with processed material. — Vertical High Pressure Extractor — VHP — vertical extraction screw with processed material.

Selecting the Pressing Stage

A vertical press can follow Low Pressure or Horizontal High Pressure extraction. The appropriate arrangement depends on the incoming residue and the final residue condition required, rather than a fixed number of stages for every product.

Discuss Your Pressing Requirements

Describe the material, its condition after the preceding extraction stage, the required throughput and the intended handling of the final residue.
