Fruit Size Grading

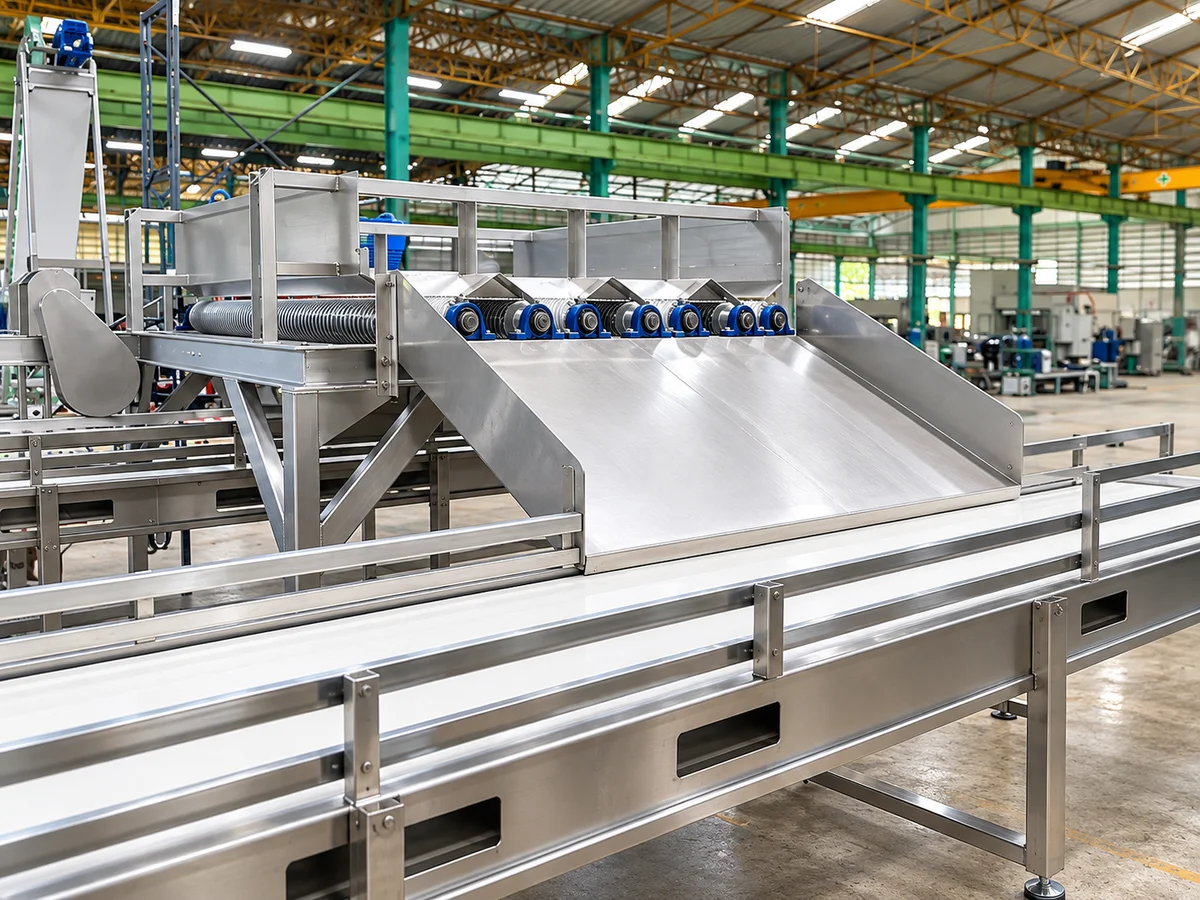

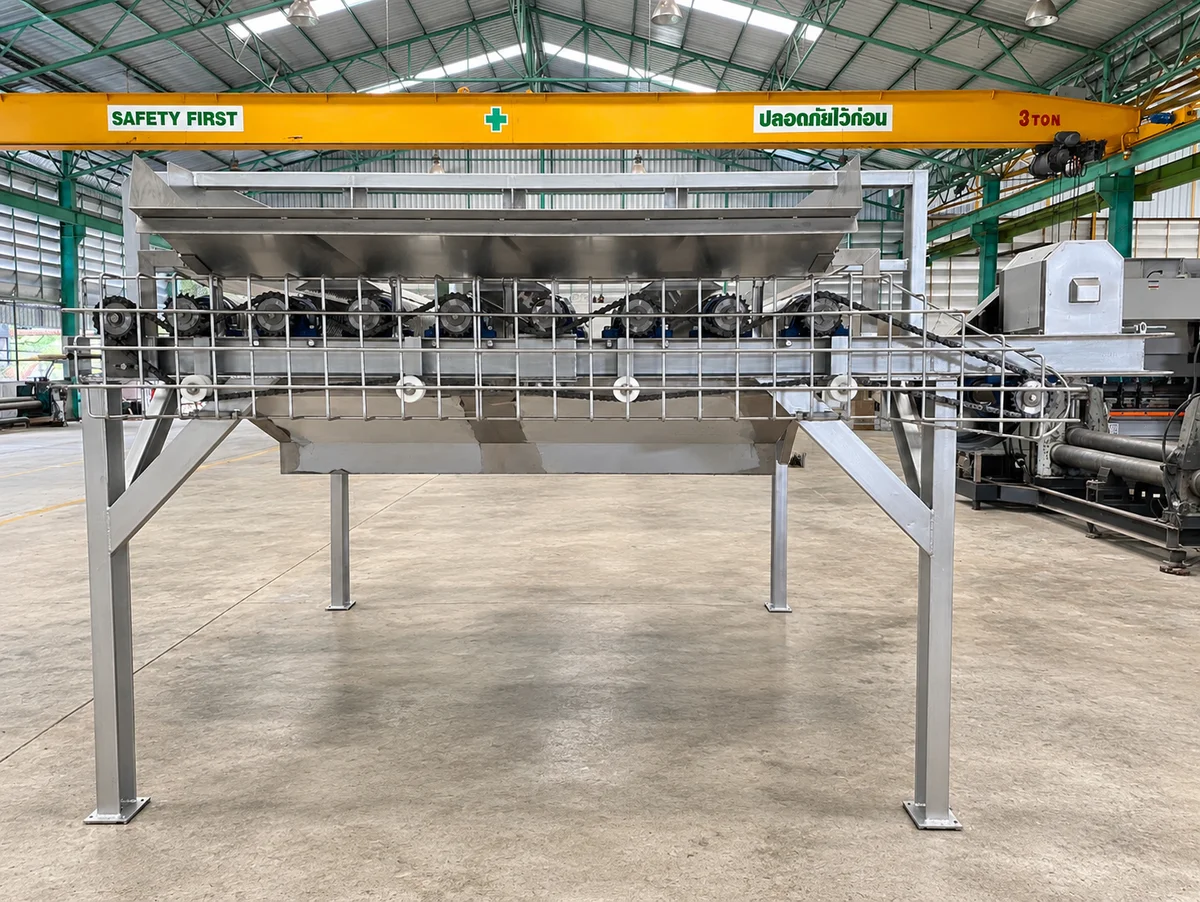

The GR-4P separates fruit by size using four pairs of driven grading rollers. Adjustable gaps define the separation size. Smaller fruit passes through to a gravity chute, while larger fruit continues to the end outlet.
Contact Us
GR-4P specifications
| Specification | Value |
|---|---|
| Processing capacity | 5–10 Ton fruit / hr / machine |
| Grading rollers | 4 pairs, motorized, 6-pitch spiral rods arranged in a straight line |
| Roller spindle speed | 215 RPM @ spindle, adjustable speed |
| Roller gap | Adjustable per required fruit size |
| Size separation | Two size ranges per machine; example arrangement: three machines for four size ranges |
| Overall dimensions (W × L × H) | 2,700 × 3,300 × 500 mm |
| Specified power requirement | 1.5 kW |
| Motor | 1.5 kW, 380 VAC / three-phase / 50 Hz |
The stated throughput is per machine. Each grader separates fruit into two size ranges. An arrangement using three graders to obtain four size ranges is one configuration, rather than a required layout for every project.
Construction: The rollers, spiral rods, chute, frame and product-contact parts are AISI 304 stainless steel.
In the processing line

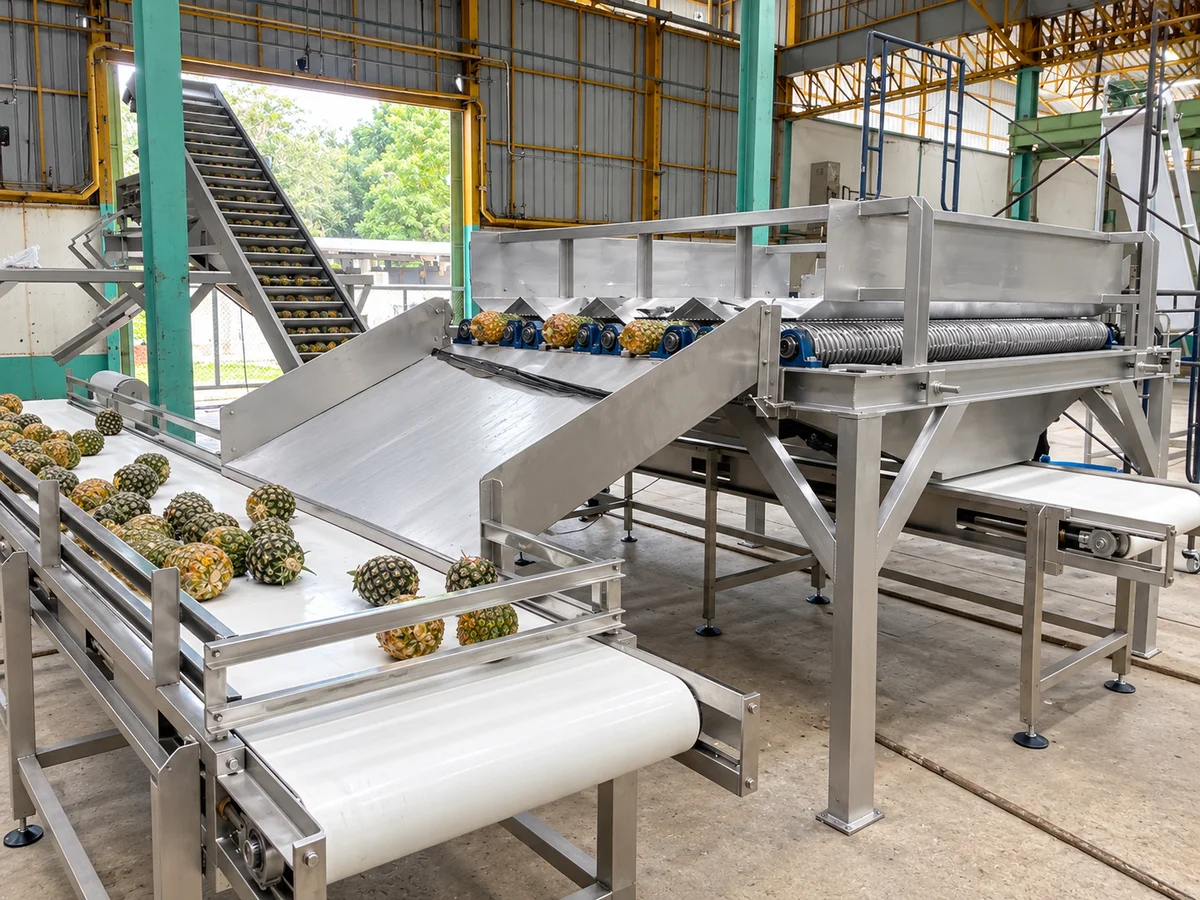

In pineapple processing, size grading sorts whole pineapples by diameter before they are directed to the appropriate preparation equipment.
Define the grading requirement
Share the incoming fruit size range, the size groups required and the intended feed to the following machine. These details establish the roller-gap settings and grading arrangement.
