Pineapple preparation
Drum Peeler
Drum peeling and crushing for pineapple juice preparation.
Discuss Your Drum Peeler Requirements
Drum Peeler and Crusher

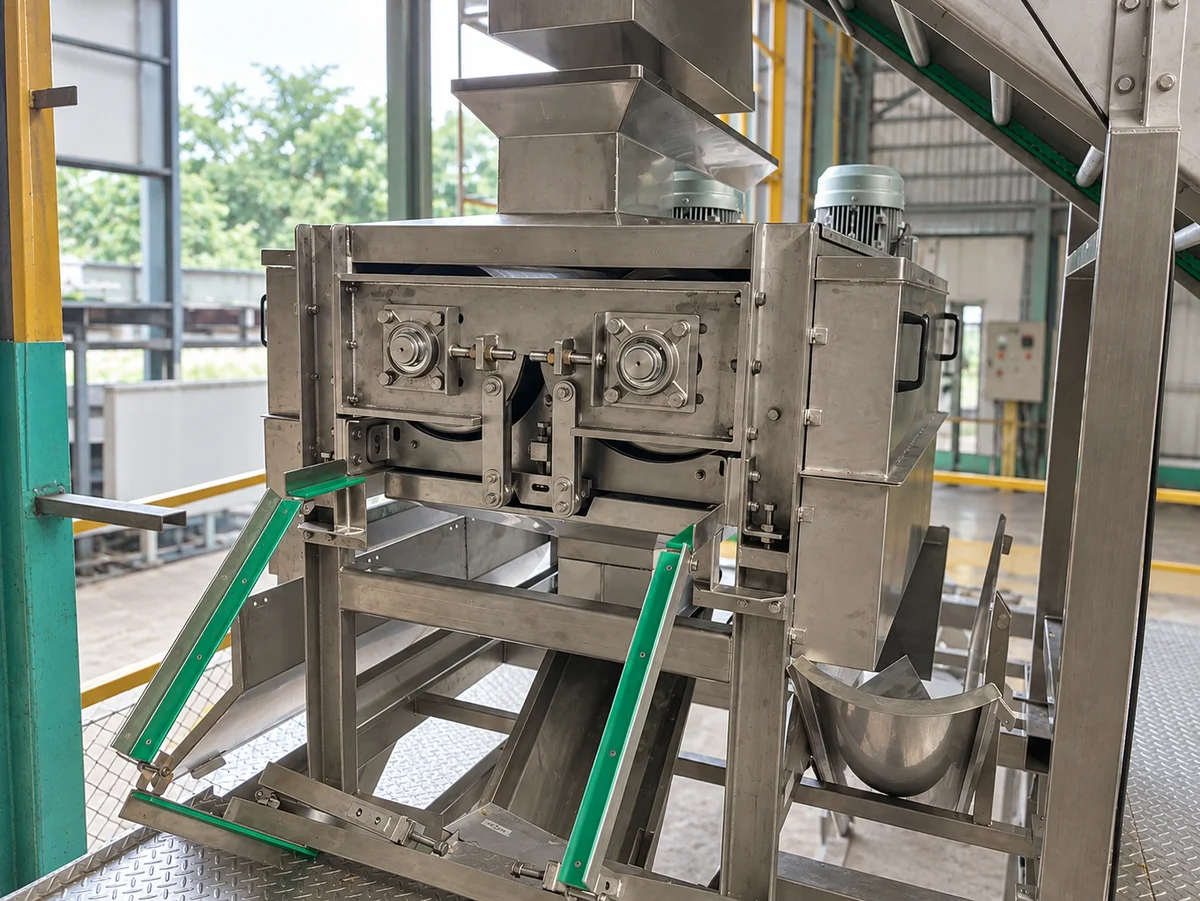

DPC machines accept whole pineapples after surface cleaning. An integrated halving unit splits each fruit before the drums scrape the flesh away from the peel. Crushed flesh leaves through the centre outlet, while peel is discharged through two side outlets.
Model Selection
| Model | Processing duty | Drive motors |
|---|---|---|
| DPC-3 | 3 tonnes of whole fruit per hour | 2 × 3 kW |
| DPC-5.5 | 6 tonnes of whole fruit per hour | 2 × 5.5 kW |
| DPC-7.5 | Recommended for 8–10 tonnes of whole fruit per hour | 2 × 7.5 kW |
All three models accept fruit diameters of 75–160 mm. Each uses two drive motors, one per side; the number in the model name identifies the motor rating per side. For an 8–10 tonne-per-hour requirement, select the DPC-7.5 arrangement.
Construction and Controls
The frame, drums, housing and product-contact parts of all three DPC models are AISI 304 stainless steel. Adjustment screws position the drums for the fruit size. A machine electrical control panel is included as standard.
The standard supply is 380 VAC, three-phase, 50 Hz. Voltage and frequency can be configured to match the customer's electrical system.
Selecting a Drum Peeler
- Fruit size range and feed condition
- Required whole-fruit throughput
- Preparation for juice extraction and connection to the next stage
Position in Juice Preparation
Recovered pineapple flesh continues to juice extraction. The preparation arrangement and its connection to the next stage are defined for the project.
Discuss Your Pineapple Preparation Requirements
Contact Us
Address: 107/1 Moo 5, Wang Phong, Pran Buri, Prachuap Khiri Khan 77120, Thailand.
Tell us whether the prepared fruit is intended for canning or juice extraction, together with the fruit size range, feed condition and required throughput. We can then define the preparation arrangement and its connection to the next stage.
