Preparation equipment
Coconut Half Cutting
Continuous coconut half cutting with water collection and handling of the coconut halves.
Discuss Your Coconut Half Cutting Requirements

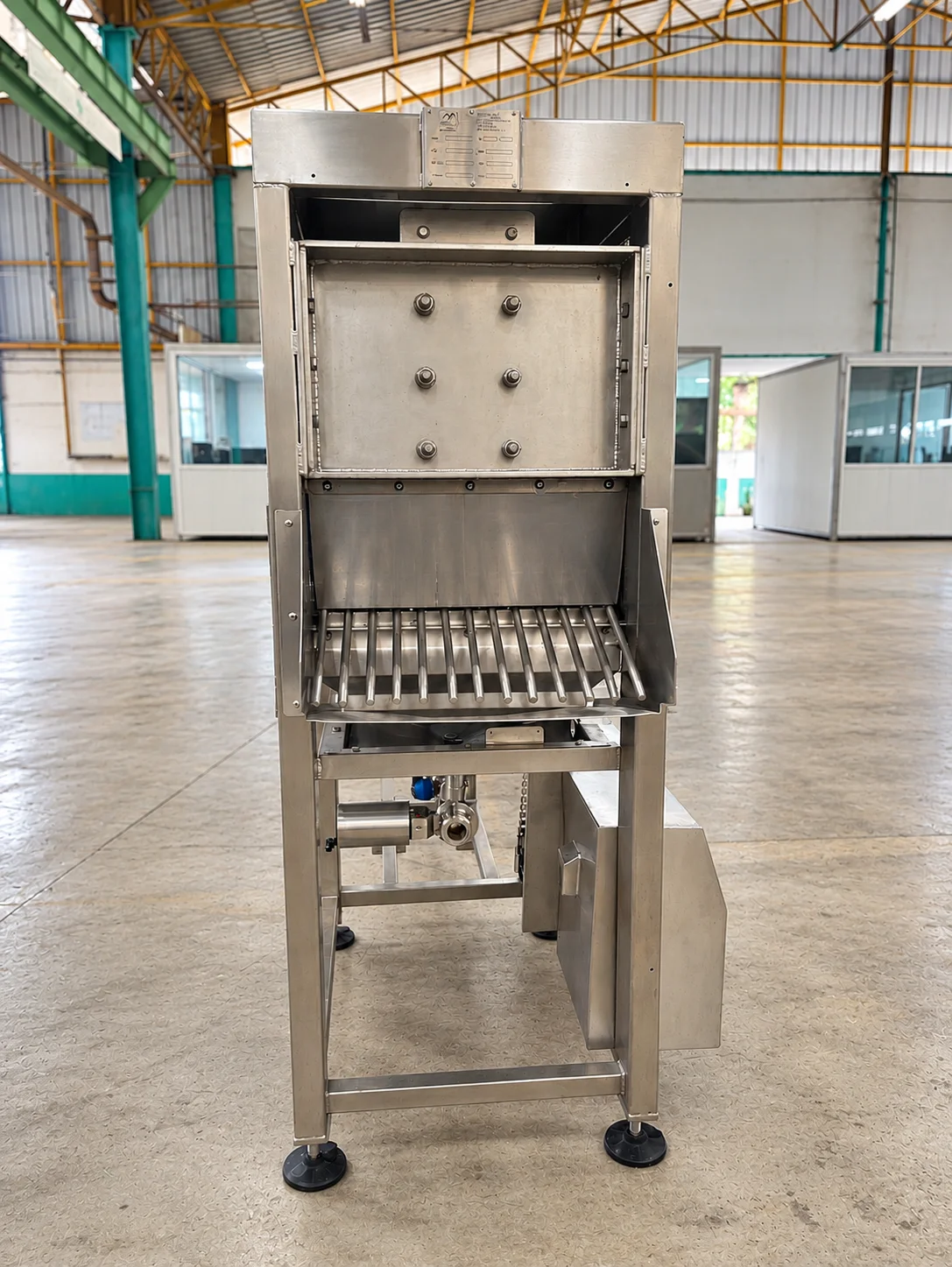

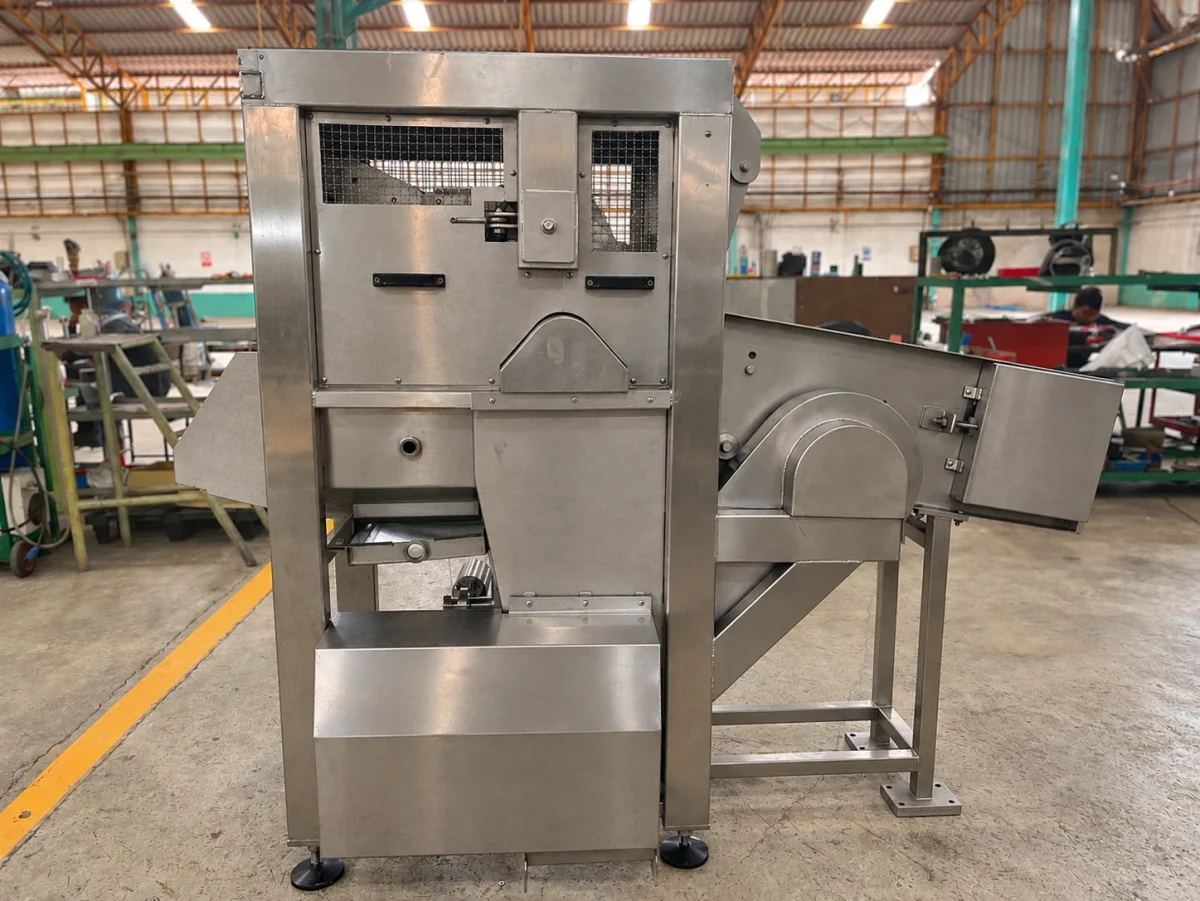

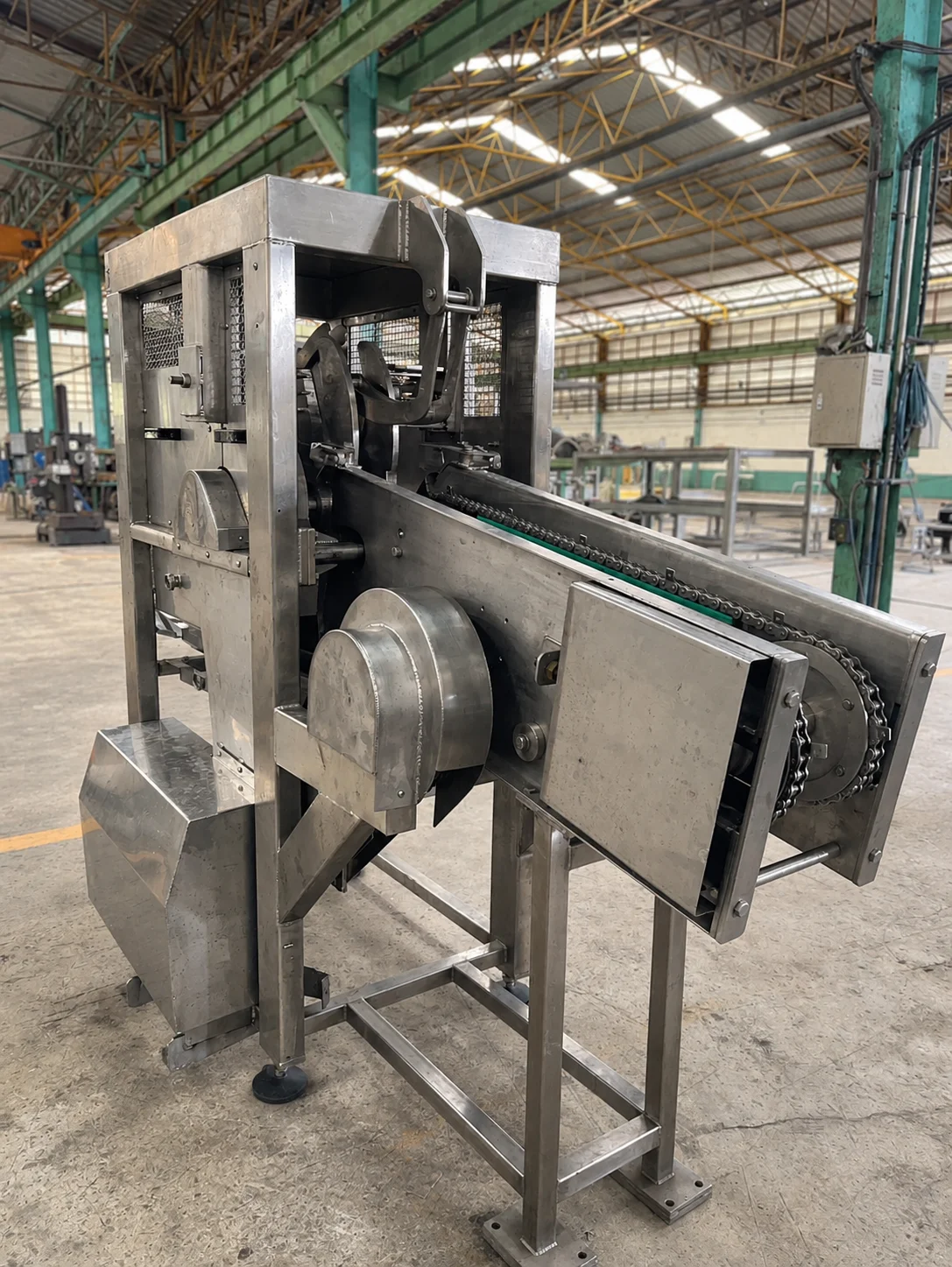

Coconut Half Cutter — CHC-RK
The CHC-RK uses a rotary knife to halve coconuts during continuous operation. A removable tray collects coconut water, and the coarse strainer intercepts larger particles before the water reaches the pump. The removable collection arrangement also enables poor-quality coconut water to be separated. Coconut halves continue to meat processing.
CHC-RK Specifications
| Specification | Value |
|---|---|
| Processing capacity | 2,700 coconuts/hr |
| Operation | Continuous operation |
| Speed control | Adjustable speed for cutting control |
| Overall dimensions (W × L × H) | 700 × 2,450 × 1,500 mm |
| Cutting system | Rotary knife |
| Knife arrangement | Removable knife for convenient maintenance |
| Water collection | Detachable receptacle / tray for collecting coconut water |
| Coarse strainer | Stainless-steel perforated plate with 2 mm holes |
| Strainer function | Intercepts coarse particles before the coconut-water pump |
| Water separation | Removable receptacle permits separation of poor-quality coconut water |
| Halved coconut outlet | Coconut halves for subsequent meat processing |
| Geared motor | 3 kW |
| Electrical supply | 380 VAC / three-phase / 50 Hz |
Construction
The elevator conveyor, roller chain and flight attachments, rotary pocket, collection tray and tank use AISI 304 stainless steel. The coarse strainer is a stainless-steel perforated plate with 2 mm holes.
Selection Requirements
- Coconut condition at the inlet and size range
- Required throughput
- Planned handling of the water and coconut halves
Position in the Process
Coconut halves continue to meat processing.
