Crushed Aloe Vera in Its Own Juice
Prepared aloe flesh follows the crushing route, then enters blending with filtered aloe juice before UHT treatment and aseptic bulk filling.
Aloe Vera Processing Lines
MNM designs and supplies integrated aloe vera processing lines, from whole-leaf receiving and preparation to UHT treatment and aseptic bulk filling.
The main product configuration is crushed aloe vera blended with its own juice. Aloe vera in syrup is an additional configuration, using formulation mixing before UHT treatment and aseptic bulk filling.
01 / Products
Product Configurations
Aloe Vera in Syrup
Prepared aloe flesh is mixed with syrup according to the required formulation. The mixed product passes through UHT treatment before filling into aseptic bulk bags.
02 / Processing stages
From Whole Leaves to Bulk Products
| Processing stage | Process and main equipment |
|---|---|
| Leaf Receiving and Washing | Whole aloe leaves enter the receiving and washing section, which combines water spray, brush washing and a chlorine soaking basin in the reference configuration. |
| Leaf Preparation and Peeling | Operators remove the base, tip and both side edges before mechanical peeling. The peeled flesh then passes through trimming and inspection. |
| Slicing and Crushing | A slicer prepares the flesh for crushing. Water supports lubrication and product transfer within the process. |
| Aloe Juice Preparation | Flesh allocated for juice production and suitable clean flesh trimmings feed the Low Pressure Extractor. The juice passes through collection and preparation tanks, a decanter and a filter press before blending. |
| Preheating and Blending | For the product in its own juice, prepared crushed aloe passes through a tubular preheater before blending with the filtered aloe juice. |
| UHT Treatment | The blended product passes through a tubular UHT system for heating, holding and cooling. Vacuum deaeration is integrated within the thermal processing section. |
| Aseptic Bulk Filling | The treated product is filled into aseptic bulk bags, followed by drum conveying and preparation for pallet handling. |

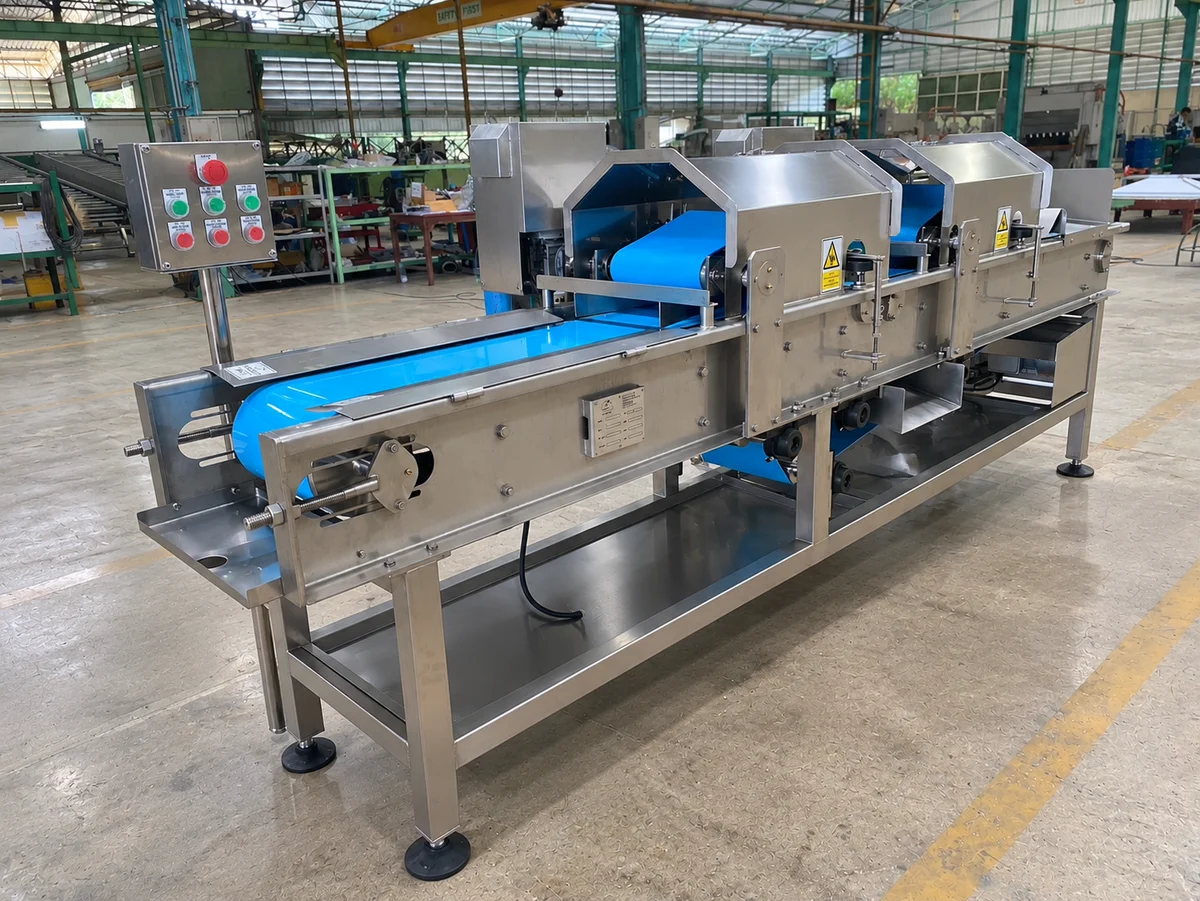

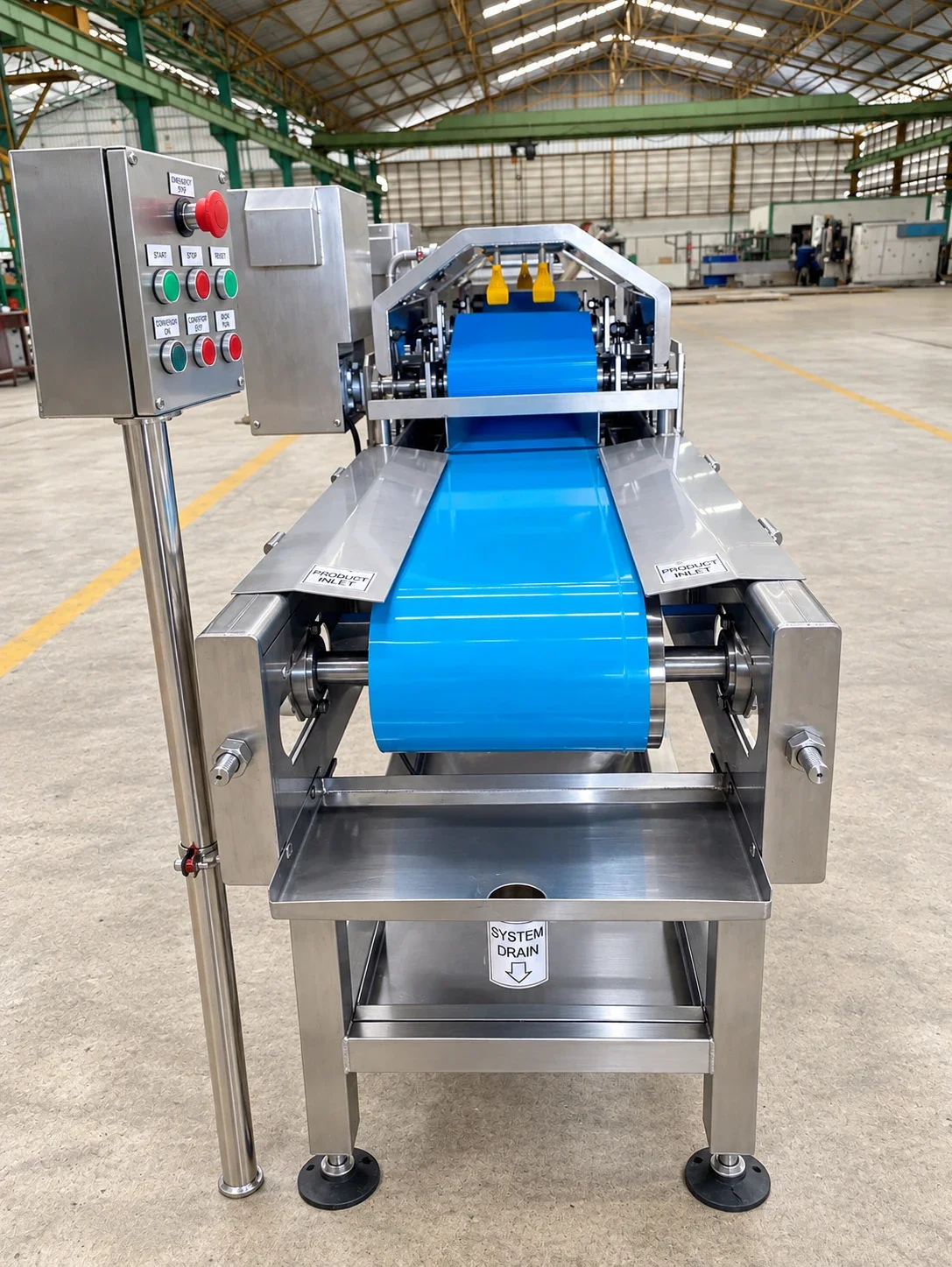

Aloe Peeler
03 / Crushed aloe
Process Overview: Aloe Vera in Its Own Juice
Prepared aloe flesh follows the crushing route before blending with its own juice.
Leaf preparation
- Whole Aloe Leaves
- Receiving and Leaf Washing
- Manual Base, Tip and Side Trimming
- Mechanical Peeling, Trimming and Inspection
Prepared flesh — slicing and crushing
From Mechanical Peeling, Trimming and Inspection →
Slicing- Crushing Route
- Tubular Preheating
Juice preparation
From Mechanical Peeling, Trimming and Inspection →
Flesh Allocated for Juice and Suitable Clean Trimmings- Low Pressure Extraction
- Juice Collection and Preparation Tanks
- Decanter
- Filter Press and Buffer Tank
Blending and aseptic processing
From Tubular Preheating →
From Filter Press and Buffer Tank →
Blending Aloe Flesh with Its Own Juice- Tubular UHT Processing with Integrated Deaeration
- Aseptic Bulk Bag Filling
- Drum Conveying and Pallet Handling
View complete diagram 16 steps
Scroll to read the full flow. Focus the diagram and use the arrow keys.
Whole Aloe Leaves
Receiving and Leaf Washing
Manual Base, Tip and Side Trimming
Mechanical Peeling, Trimming and Inspection
Slicing
Crushing Route
Tubular Preheating
Flesh Allocated for Juice and Suitable Clean Trimmings
Low Pressure Extraction
Juice Collection and Preparation Tanks
Decanter
Filter Press and Buffer Tank
Blending Aloe Flesh with Its Own Juice
Tubular UHT Processing with Integrated Deaeration
Aseptic Bulk Bag Filling
Drum Conveying and Pallet Handling
Read all steps and connections
- Whole Aloe Leaves → Receiving and Leaf Washing
- Receiving and Leaf Washing → Manual Base, Tip and Side Trimming
- Manual Base, Tip and Side Trimming → Mechanical Peeling, Trimming and Inspection
- Mechanical Peeling, Trimming and Inspection → Slicing
- Slicing → Crushing Route
- Crushing Route → Tubular Preheating
- Mechanical Peeling, Trimming and Inspection → Flesh Allocated for Juice and Suitable Clean Trimmings
- Flesh Allocated for Juice and Suitable Clean Trimmings → Low Pressure Extraction
- Low Pressure Extraction → Juice Collection and Preparation Tanks
- Juice Collection and Preparation Tanks → Decanter
- Decanter → Filter Press and Buffer Tank
- Tubular Preheating → Blending Aloe Flesh with Its Own Juice
- Filter Press and Buffer Tank → Blending Aloe Flesh with Its Own Juice
- Blending Aloe Flesh with Its Own Juice → Tubular UHT Processing with Integrated Deaeration
- Tubular UHT Processing with Integrated Deaeration → Aseptic Bulk Bag Filling
- Aseptic Bulk Bag Filling → Drum Conveying and Pallet Handling
04 / Additional configuration
Additional Configuration: Aloe Vera in Syrup
Prepared flesh to aseptic bulk bags
- Prepared Aloe Flesh
- Mixing with Syrup According to Formulation
- UHT Treatment
- Aseptic Bulk Bag Filling
View complete diagram 4 steps
Scroll to read the full flow. Focus the diagram and use the arrow keys.
Prepared Aloe Flesh
Mixing with Syrup According to Formulation
UHT Treatment
Aseptic Bulk Bag Filling
Read all steps and connections
- Prepared Aloe Flesh → Mixing with Syrup According to Formulation
- Mixing with Syrup According to Formulation → UHT Treatment
- UHT Treatment → Aseptic Bulk Bag Filling
05 / Connected production sections
Line Integration
The process connects leaf preparation, slicing and crushing, aloe juice preparation, blending and aseptic processing.
Conveyors, buffer tanks, transfer pumps, piping and controls connect the production sections. Rind and rejected material follow a separate waste conveying route, while suitable clean flesh trimmings are available for juice extraction. CIP connections and cleaning circuits support the relevant tanks and processing equipment.
06 / Project requirements
Planning Your Aloe Vera Processing Project
To develop the line configuration, provide:
- Incoming leaf condition and required raw-material throughput.
- Required product: crushed aloe or aloe in syrup.
- Target particle size and product formulation.
- Required finished-product capacity and bulk packaging format.
- Available floor space and utilities.
Share your raw material, product requirements and production target with MNM to begin defining the processing line.
